Vortex
This product has been discontinued. It has been replaced by this product: https://www.adj.com/vortex-150

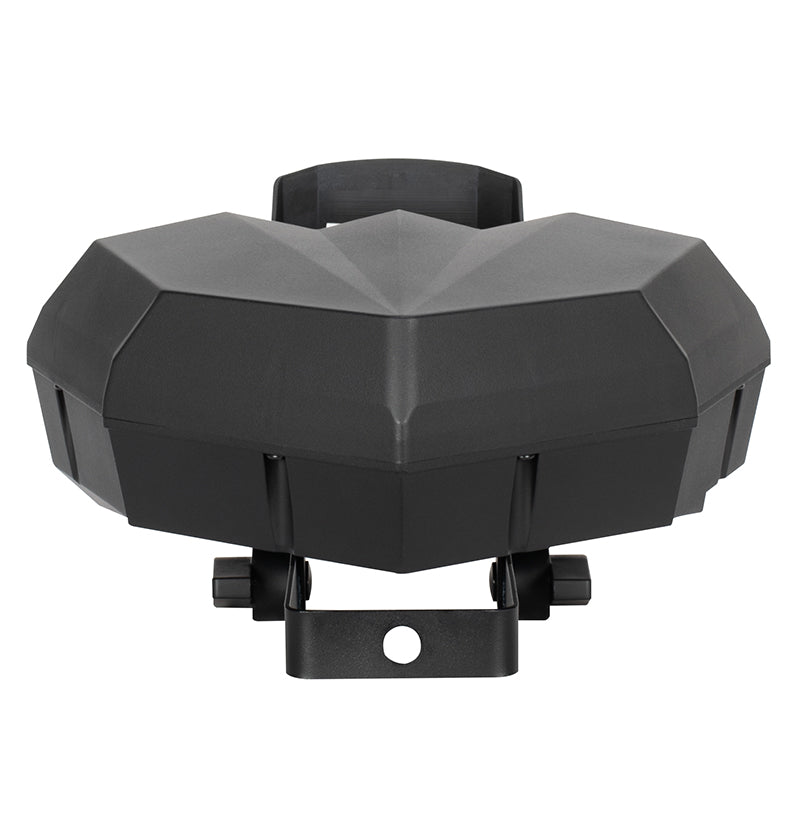

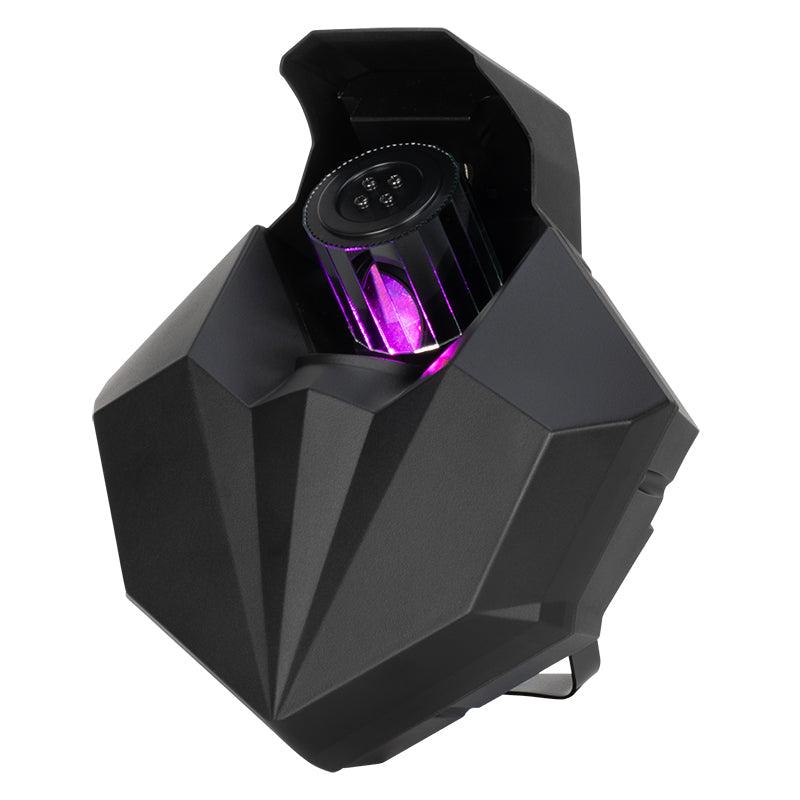

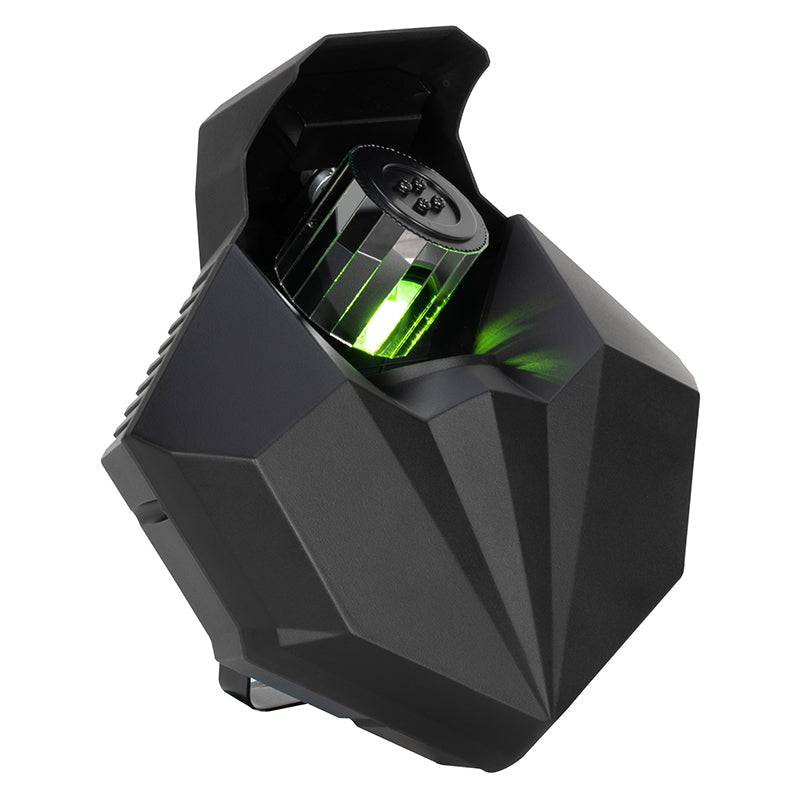

The Eliminator Vortex is a classic moonflower effect with a barrel mirrored scanner that produced multiple razor-sharp 5-degree beams of light powered by an 80W LED engine. It features 10 Color/GOBOs combinations, GOBO shake effect, mesmerizing strobe effects and has 6 built-in light shows.The Vortex may be controlled by DMX, Remote Device Management (RDM), sound activation or in show mode from a 4-buttom control menu with a digital display. The quick barrel movements run 180-degrees on the X-axis and 260-degrees on the Y-axis. The beams may be focused from manual focusing knob.
A great effect for those who love fast moving scanner, the Vortex is compact and lightweight, making it a great effect for venues with low ceilings or tight spaces, bars, lounges, roller rinks, jump parks and fun centers.
Vortex
This product has been discontinued. It has been replaced by this product: https://www.adj.com/vortex-150
The Eliminator Vortex is a classic moonflower effect with a barrel mirrored scanner that produced multiple razor-sharp 5-degree beams of light powered by an 80W LED engine. It features 10 Color/GOBOs combinations, GOBO shake effect, mesmerizing strobe effects and has 6 built-in light shows.The Vortex may be controlled by DMX, Remote Device Management (RDM), sound activation or in show mode from a 4-buttom control menu with a digital display. The quick barrel movements run 180-degrees on the X-axis and 260-degrees on the Y-axis. The beams may be focused from manual focusing knob.
A great effect for those who love fast moving scanner, the Vortex is compact and lightweight, making it a great effect for venues with low ceilings or tight spaces, bars, lounges, roller rinks, jump parks and fun centers.
Specifications
Light Source:
• 80W White LED (50,000 Hrs.)

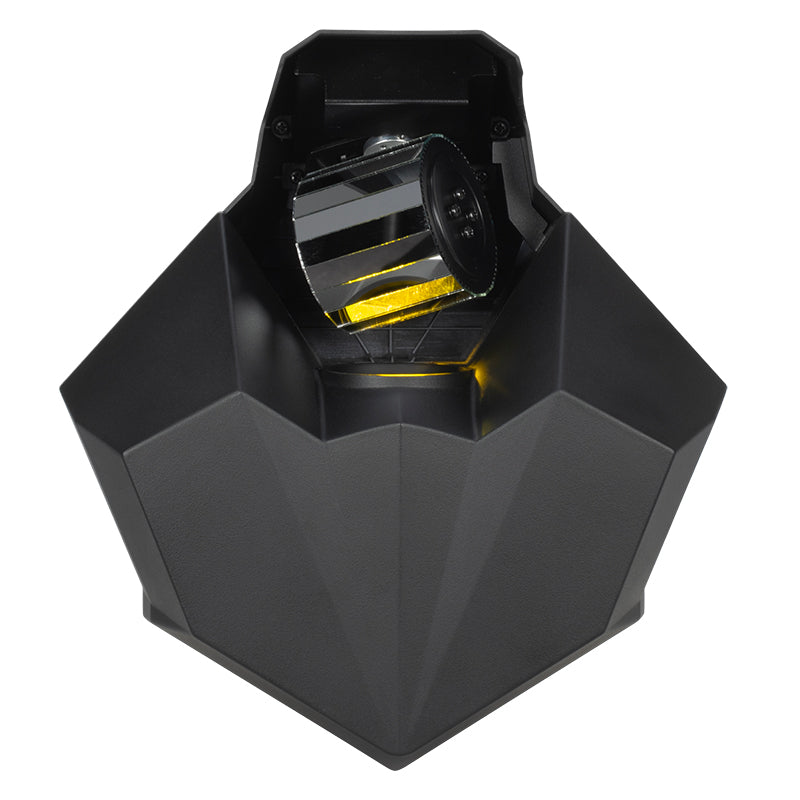

Barrel Mirror:
• Barrel Movement: X-Axis = 180°, Y-Axis 360°
• Beam Angle: Multiple Beams, 5° each
• Beam Focusing Knob

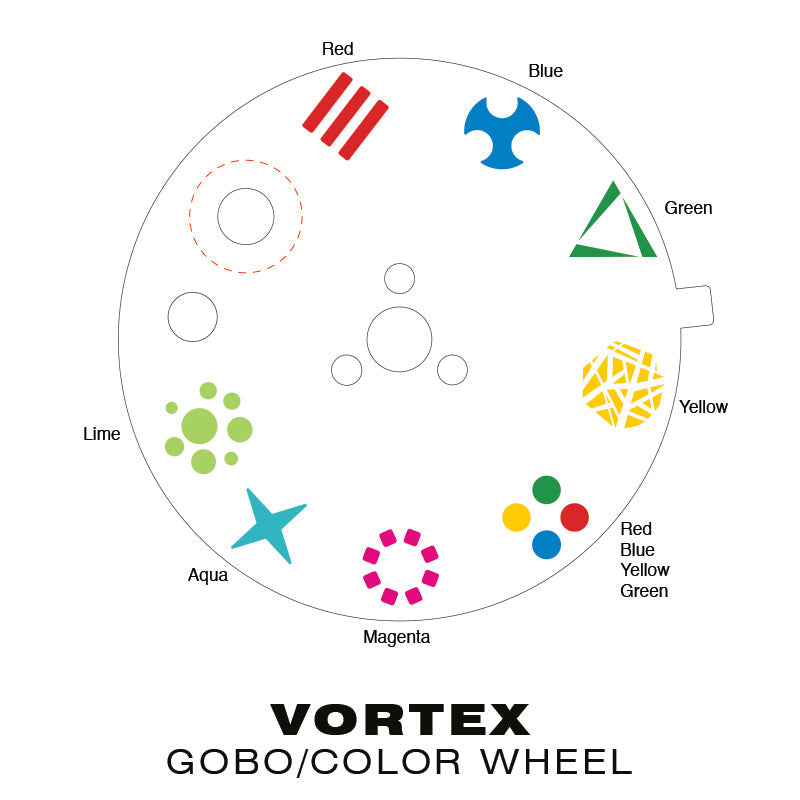

Colors/GOBOs:
• 10 Color / Gobo combinations
• Color/Gobo Shake
Control:
• 1-40Hz Strobe Rate
• 6 Built-In Light Shows
• Control: DMX512, RDM, Sound and Show Mode
• DMX Modes: 2 DMX Control Modes (10 12 Channels)
• 4-Button Digital Display

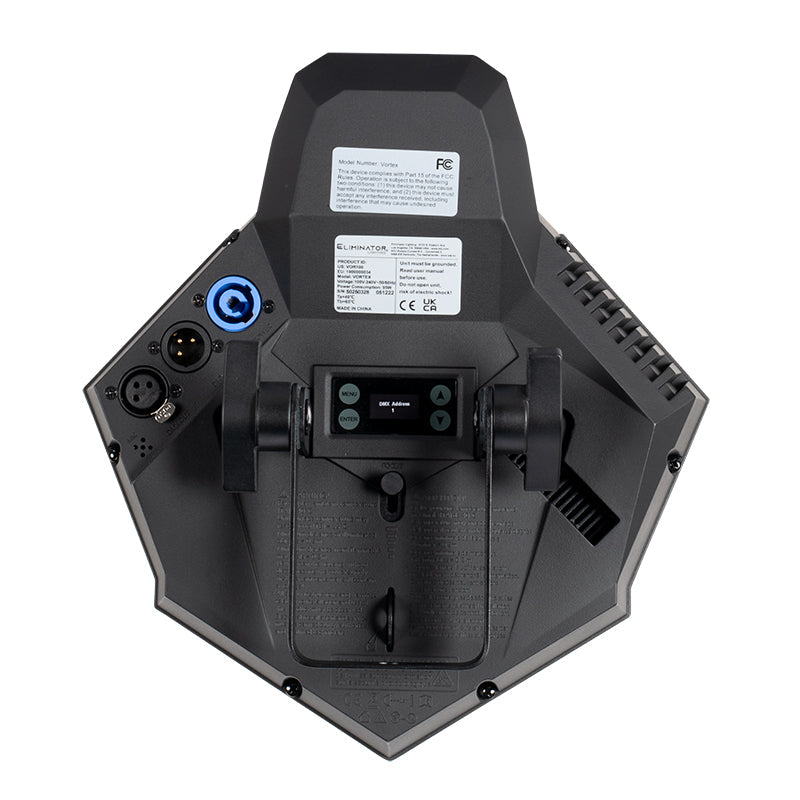

Connections:
• 3-pin DMX In/Out
• Indoor Locking power input
• Safety eye to attach a safety cable
Electrical:
• Power: 100-240VAC, 50/60HZ
• Power Consumption: 100W
Size / Weight:
• Dimensions (LxWxH): 12.3" x 11.11" x 6.2" (312x282x157mm)
• Weight: 7.1 lbs. (3.2Kg)
Approvals:
• CE and cETLus (Pending)
• IP20
Included:
• Adjustable Angle Hanging Bracket
• Power Cable
Video
Downloads
| Filename | Document type | File type |
|---|---|---|
| Vortex - User Manual | User Manual | |
| Eliminator Vortex Cut Sheet | Other | |
| Vortex - Dimensional Drawing | Dimensional Drawings | |
| Vortex - 2D Cad | CAD Drawing | DWG |
| Vortex - DMX Traits | DMX Traits |
