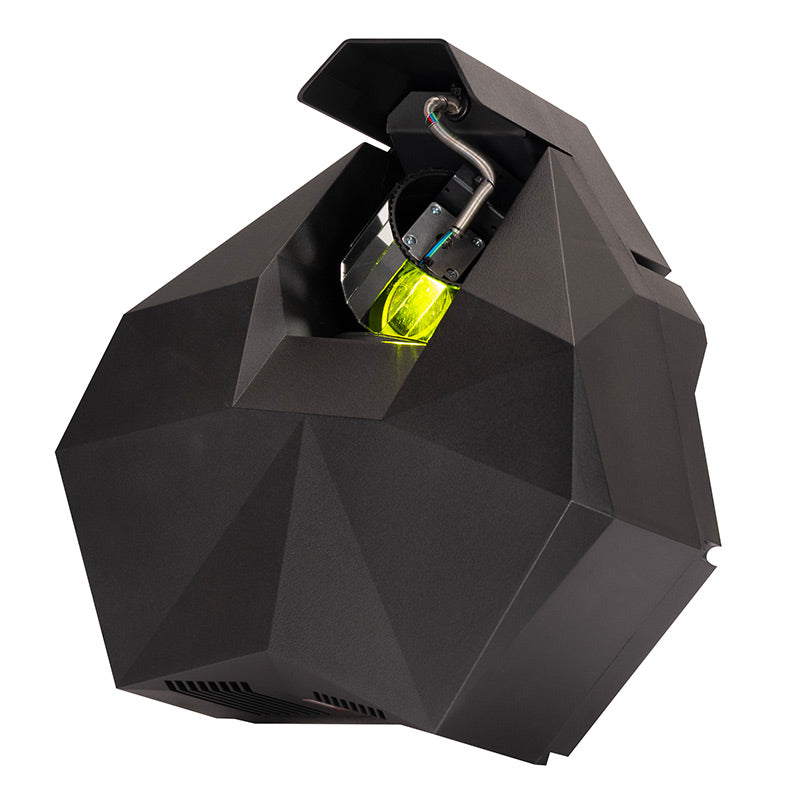

The Eliminator Vortex 150 is a classic moonflower effect with a barrel mirrored scanner that produced multiple razor-sharp 3-degree beams of light powered by an 150W LED engine. It features 13 Color/GOBOs combinations, GOBO shake effect, mesmerizing strobe effects and has 6 built-in light shows.
UPC: 810087374365SKU: VOR113

Vortex 150

The Vortex 150 continues to redefine dynamic lighting with its classic moonflower effect and barrel mirrored scanner. Powered by a robust 150W white LED engine, it delivers razor-sharp 3-degree beams that cut through the air with precision. Featuring 13 vibrant Color/GOBO combinations, GOBO shake effects, mesmerizing strobe effects, and 6 built-in light shows, the Vortex 150 is designed to captivate audiences and help bring a party to life.
Take control with multiple operation modes, including DMX, Remote Device Management (RDM), sound activation, or show mode. Adjust settings effortlessly using the intuitive 4-button control menu and digital display. The barrel mirror ensures rapid, fluid movements with a range of 180° on the X-axis and a full 360° on the Y-axis. Fine-tune the beams and GOBO patterns using the manual focusing knob for ultimate precision.

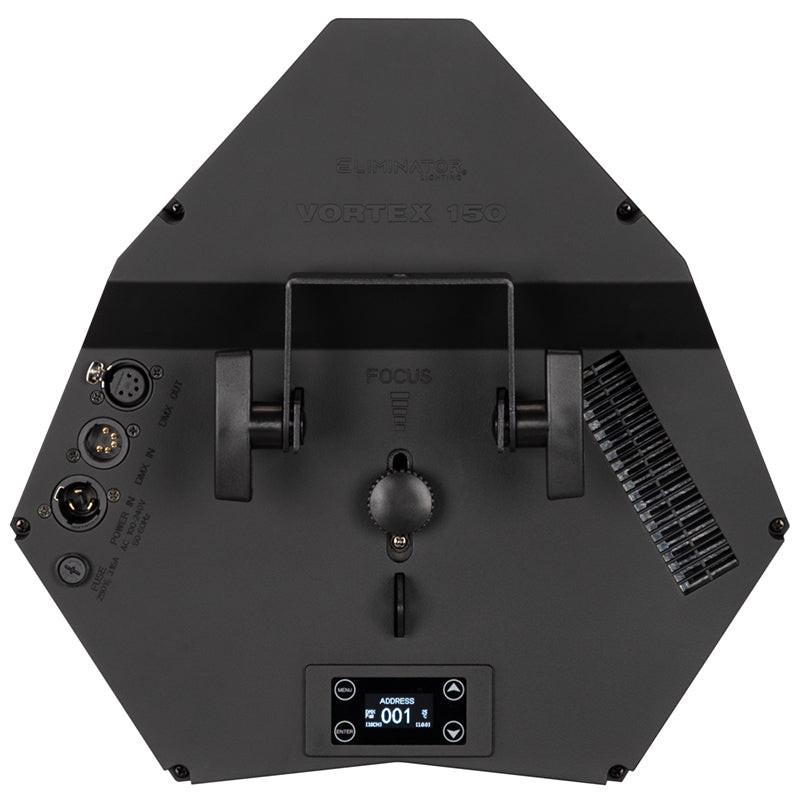

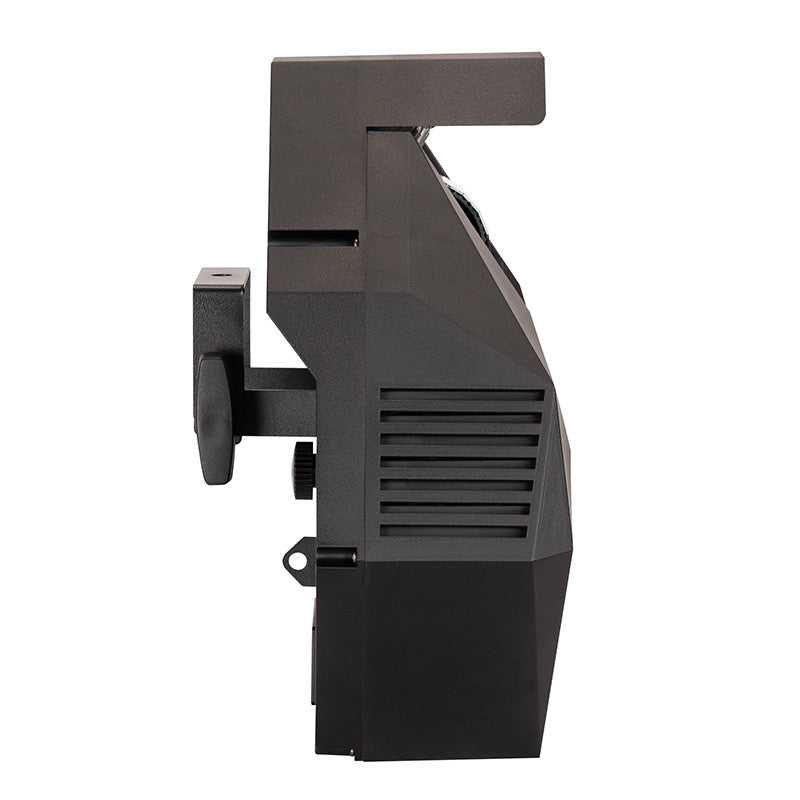

The fixture is equipped with 5-pin DMX In/Out connections, an IP65 locking power input, and a safety loop for secure mounting. Compact and lightweight, the Vortex 150 is ideal for tight spaces, low ceilings, and high-energy venues such as bars, lounges, roller rinks, and fun centers.

Vortex 150

The Vortex 150 continues to redefine dynamic lighting with its classic moonflower effect and barrel mirrored scanner. Powered by a robust 150W white LED engine, it delivers razor-sharp 3-degree beams that cut through the air with precision. Featuring 13 vibrant Color/GOBO combinations, GOBO shake effects, mesmerizing strobe effects, and 6 built-in light shows, the Vortex 150 is designed to captivate audiences and help bring a party to life.
Take control with multiple operation modes, including DMX, Remote Device Management (RDM), sound activation, or show mode. Adjust settings effortlessly using the intuitive 4-button control menu and digital display. The barrel mirror ensures rapid, fluid movements with a range of 180° on the X-axis and a full 360° on the Y-axis. Fine-tune the beams and GOBO patterns using the manual focusing knob for ultimate precision.
The fixture is equipped with 5-pin DMX In/Out connections, an IP65 locking power input, and a safety loop for secure mounting. Compact and lightweight, the Vortex 150 is ideal for tight spaces, low ceilings, and high-energy venues such as bars, lounges, roller rinks, and fun centers.

Specifications

Light Source:
• 150W White LED (30,000 Hrs.)

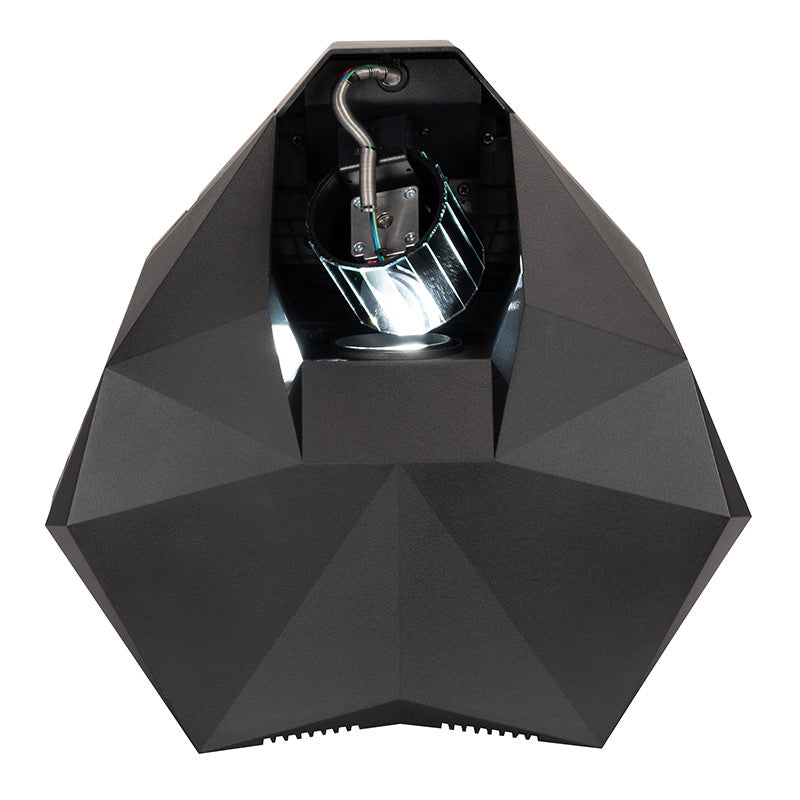

Barrel Mirror:
• Barrel Movement: X-Axis = 180°, Y-Axis 360°
• Beam Angle: Multiple Beams, 3° each
• Beam Focusing Knob

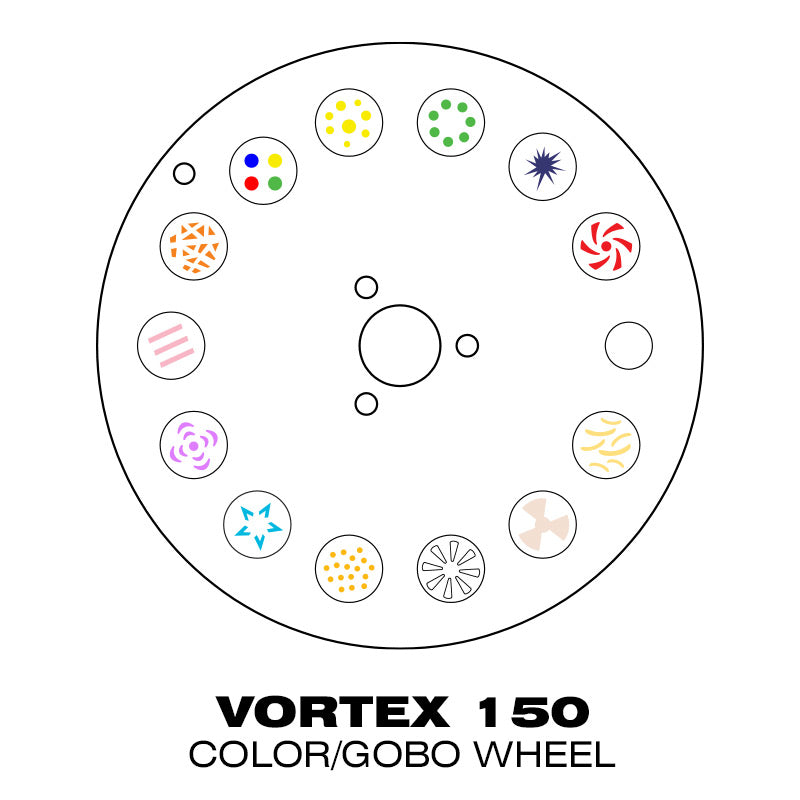

Colors/GOBOs:
• 13 Color / Gobo combinations
• Color/Gobo Shake

Control:
• DMX512, RDM, Sound and Show Mode
• 0.5-33Hz Strobe Rate
• User selectable LED Refresh Rate
• 6 Built-In Light Shows
• DMX Modes: 2 DMX Control Modes (10 12 Channels)
• 4-Button Digital Display

Connections:
• 5-pin DMX In/Out
• IP65 Locking power input
• Safety eye to attach a safety cable

Electrical:
• Power: 100-230VAC, 50/60HZ
• Power Consumption: 195W@ 120V., 175W@230V.

Size / Weight:
• Dimensions (LxWxH): 9.3" x 13.4" x 13.2" (236x340x334mm)
• Weight: 10.1 lbs. (4.6Kg)

Approvals Rating:
• CE
• cETLus (Control # : 5028947)
• FCC
• IP20

Included:
• Adjustable Angle Hanging Bracket
• Power Cable

Specifications are subject to change without notice.

Downloads

Filename Document type File type
Vortex 150 - Cut Sheet Other PDF
Vortex 150 - 2D Cad Drawing CAD Drawing DWG
Vortex 150 3D Cad CAD Drawing DWG
Vortex 150 - Dimensional Drawing Dimensional Drawings PDF
Vortex 150 - User Manual User Manual PDF
