The Eliminator Lighting UVLED 48EL is the next generation 4-foot black light fixture. It gives you the affordability and footprint of a traditional florescent black light tube and fixture but with the super long life of LED.
UPC: 810087372279SKU: UVL485

UVLED 48EL

The Eliminator Lighting UVLED 48EL is the next generation 4-foot black light fixture. It gives you the affordability and footprint of a traditional florescent black light tube and fixture but with the super long life of LED. This fixture is equipped with a UV tube with 96 0.3W SMD UV LEDs, produces a beam angle of 120-degrees, and is easy to operate with a simple On/Off switch.
The LED is removable and may be replaced if needed. However, the tube is rated at a 50,000 hour life expectancy. The UVLED 48EL requires little to no maintenance and is suitable for small stages, lounges, bars, fun centers and mobile productions.

UVLED 48EL

The Eliminator Lighting UVLED 48EL is the next generation 4-foot black light fixture. It gives you the affordability and footprint of a traditional florescent black light tube and fixture but with the super long life of LED. This fixture is equipped with a UV tube with 96 0.3W SMD UV LEDs, produces a beam angle of 120-degrees, and is easy to operate with a simple On/Off switch.
The LED is removable and may be replaced if needed. However, the tube is rated at a 50,000 hour life expectancy. The UVLED 48EL requires little to no maintenance and is suitable for small stages, lounges, bars, fun centers and mobile productions.

Specifications

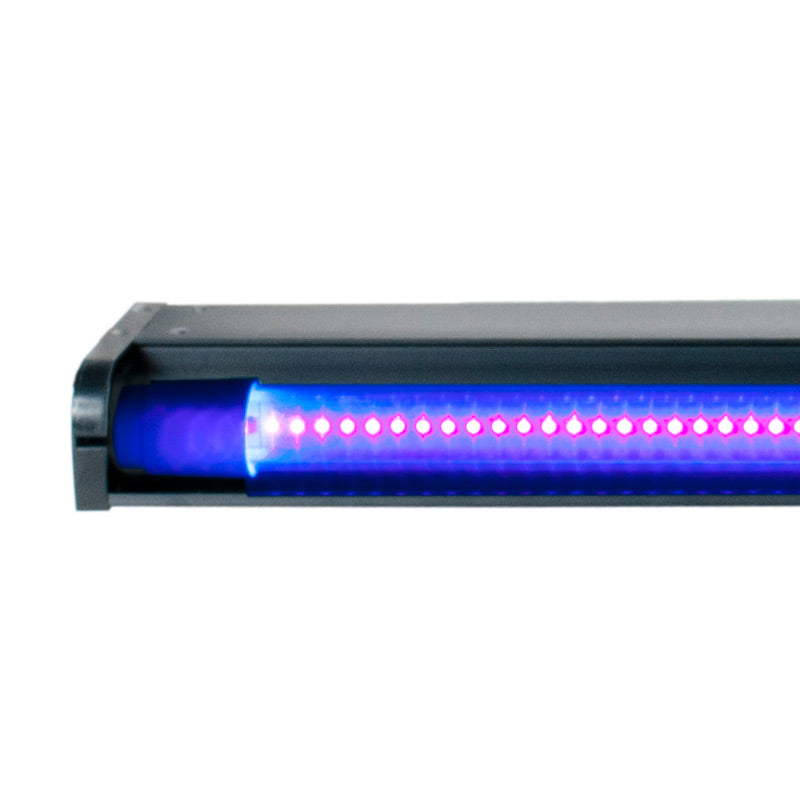

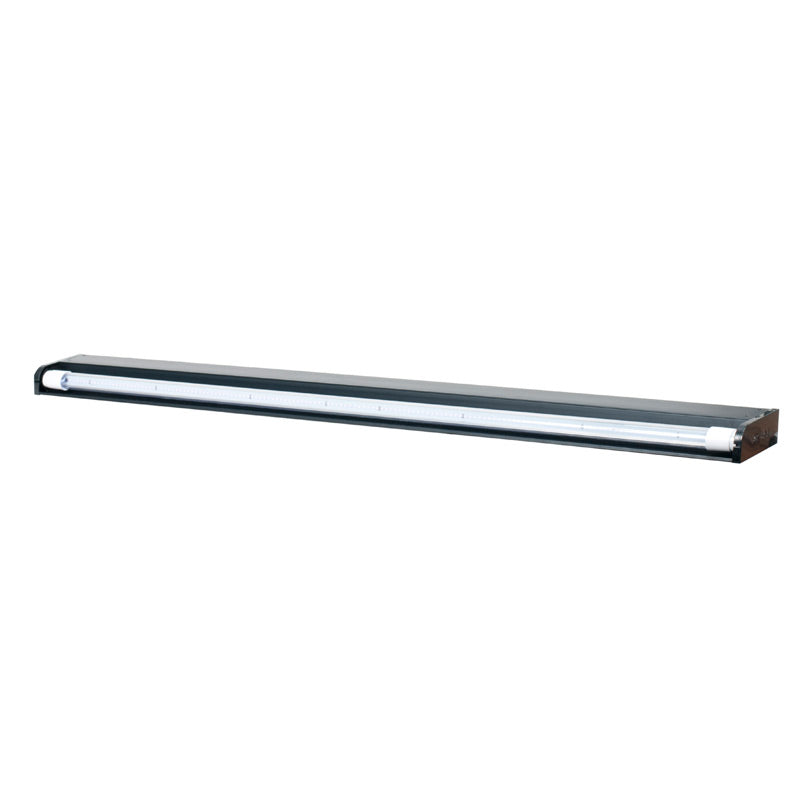

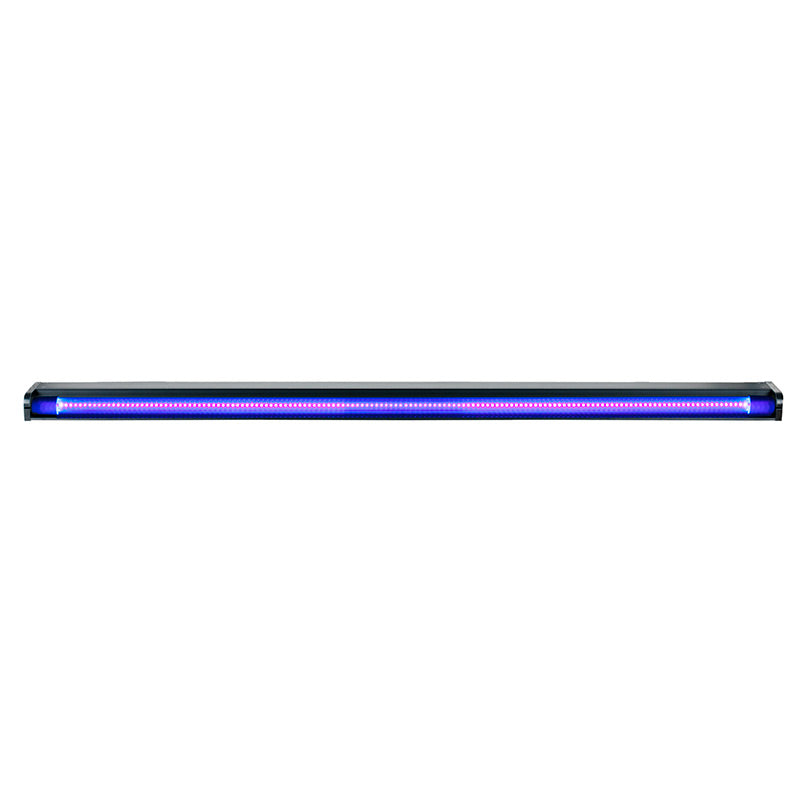

• 4-foot (1200mm) black light bar with 96x 0.3W SMD UV LEDs
• Great for small performance stages, lounges, mobile productions and special effects installs
• Requires almost no maintenance: long life LED, low heat output, low power consumption no moving parts

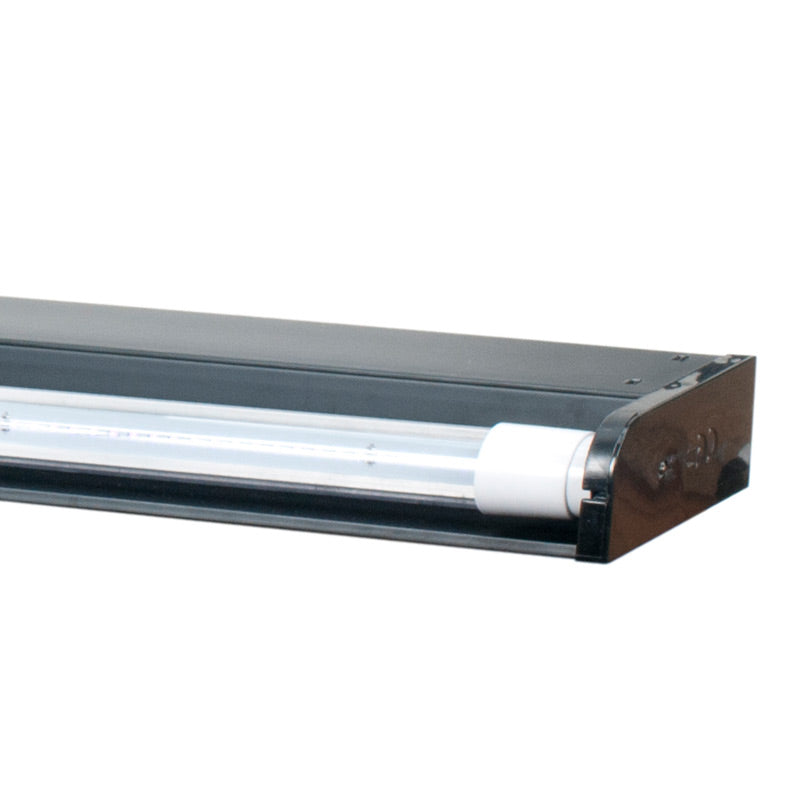

• Replaceable UV LED Bar
• Beam angle: 120-degrees
• Wavelength: 395-410nm
• Power Draw: 20W

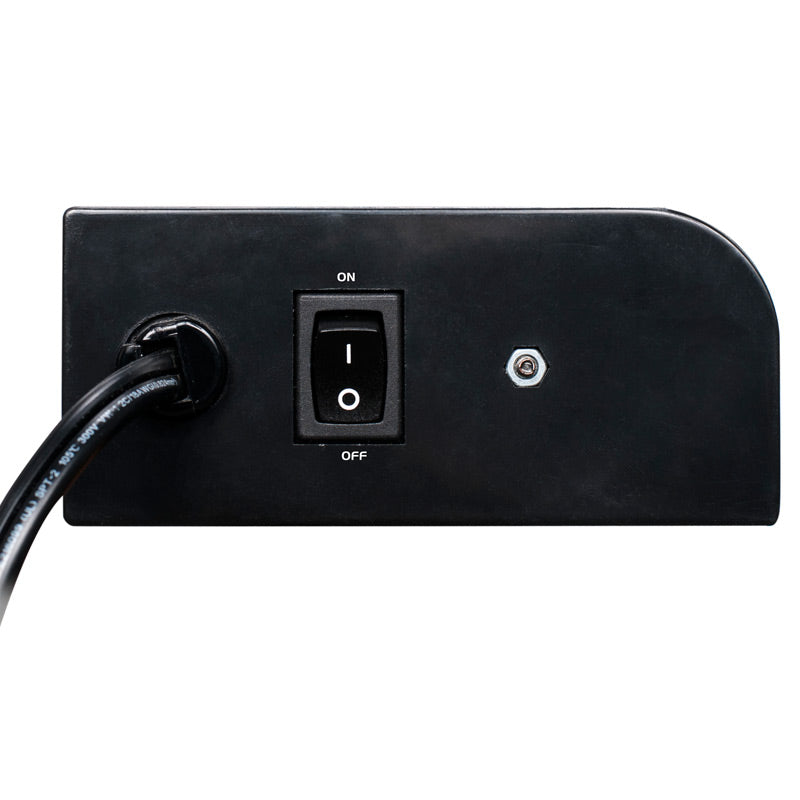

• On/Off switch
• Attached power cord length: 3 feet / 1M
• Life expectancy: 50,000 hrs.
• Built-in mounting points
• Multi-voltage operation: AC 100-240V, 47/63Hz
• Dimensions (LxWxH): 48” x 1.7” x 3.7”/1200 x 42 x 95mm
• Weight: 1.7 lbs. / 0.7 kgs.

Downloads

Filename Document type File type
UVLED 48EL - User Manual User Manual PDF
