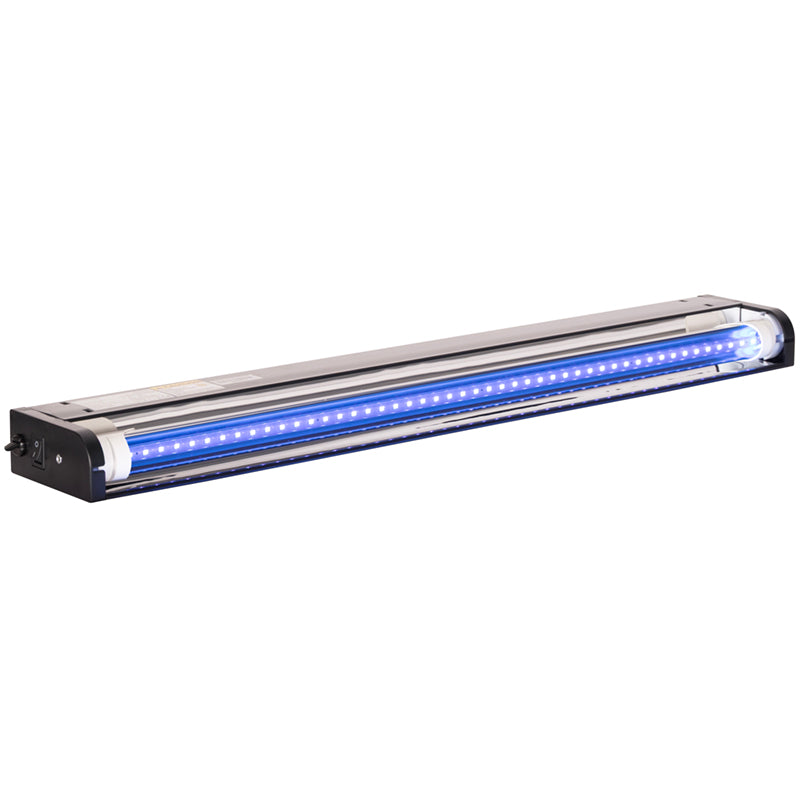

The Eliminator Lighting UVLED 24EL is a compact 2-foot black light bar featuring 48 x 0.3W SMD UV LEDs that deliver vibrant ultraviolet wash with minimal power consumption. Lightweight, energy-efficient, and maintenance-free, it’s perfect for small stages, lounges, mobile DJs, and special effects installations.
UPC: 810087375867SKU: UVL253

UVLED 24EL

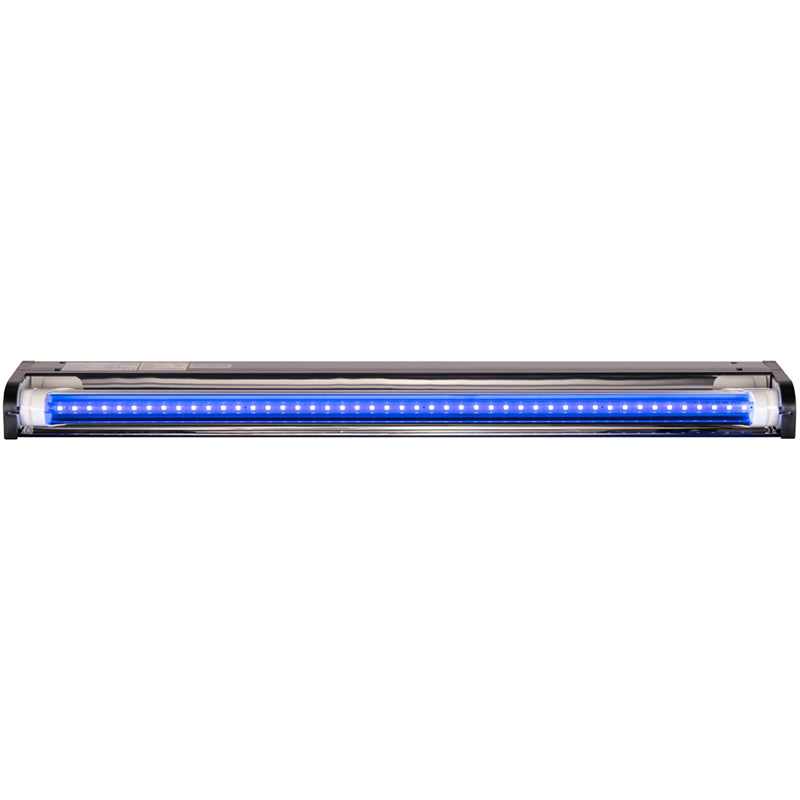

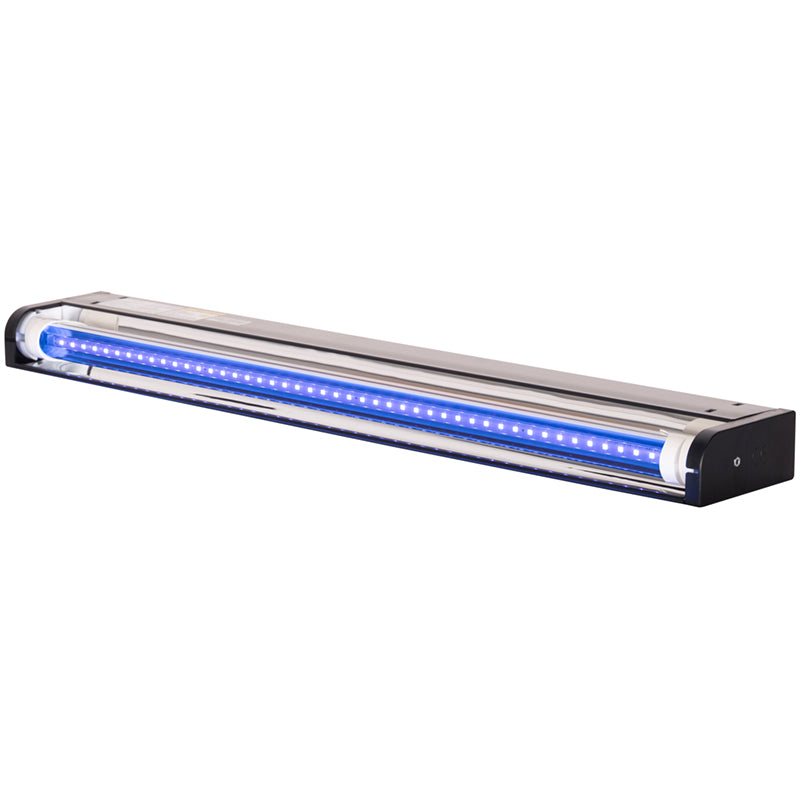

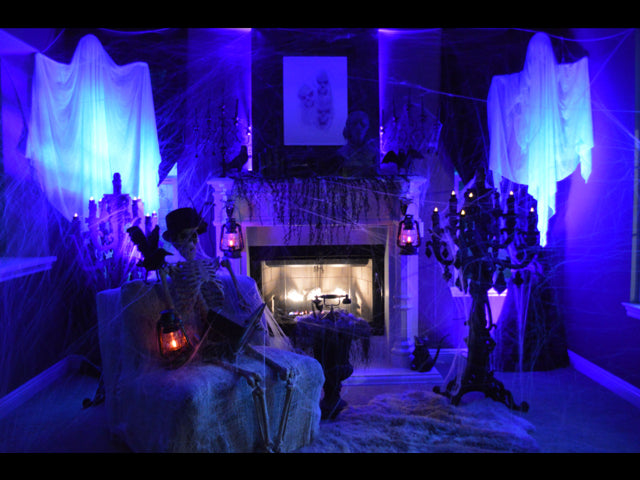

The Eliminator Lighting UVLED 24EL is a powerful yet energy-efficient 2-foot (600mm) UV black light bar designed to bring vibrant fluorescent effects to any space. Equipped with 48 x 0.3W SMD UV LEDs, this fixture produces a wide 120-degree beam angle and operates within a 395–410nm wavelength range, delivering strong ultraviolet output ideal for illuminating reactive materials, décor, and performers.Perfect for small performance stages, lounges, mobile productions, haunted attractions, fun centers, and special effects installations, the UVLED 24EL offers long-lasting performance with virtually no maintenance required. Its LED technology provides low heat output, minimal power consumption, and an impressive 50,000-hour life expectancy. With no moving parts and a replaceable UV LED bar, this fixture is built for reliability and longevity.Designed for convenience and versatility, the UVLED 24EL features built-in mounting points for easy installation, an attached 3-foot (1M) power cord, and simple on/off operation. Multi-voltage compatibility (AC 100-240V) ensures reliable performance worldwide. Lightweight and compact, it’s an easy solution for creating dynamic UV effects in both permanent and portable applications.

UVLED 24EL

The Eliminator Lighting UVLED 24EL is a powerful yet energy-efficient 2-foot (600mm) UV black light bar designed to bring vibrant fluorescent effects to any space. Equipped with 48 x 0.3W SMD UV LEDs, this fixture produces a wide 120-degree beam angle and operates within a 395–410nm wavelength range, delivering strong ultraviolet output ideal for illuminating reactive materials, décor, and performers.Perfect for small performance stages, lounges, mobile productions, haunted attractions, fun centers, and special effects installations, the UVLED 24EL offers long-lasting performance with virtually no maintenance required. Its LED technology provides low heat output, minimal power consumption, and an impressive 50,000-hour life expectancy. With no moving parts and a replaceable UV LED bar, this fixture is built for reliability and longevity.Designed for convenience and versatility, the UVLED 24EL features built-in mounting points for easy installation, an attached 3-foot (1M) power cord, and simple on/off operation. Multi-voltage compatibility (AC 100-240V) ensures reliable performance worldwide. Lightweight and compact, it’s an easy solution for creating dynamic UV effects in both permanent and portable applications.

Specifications

Source:

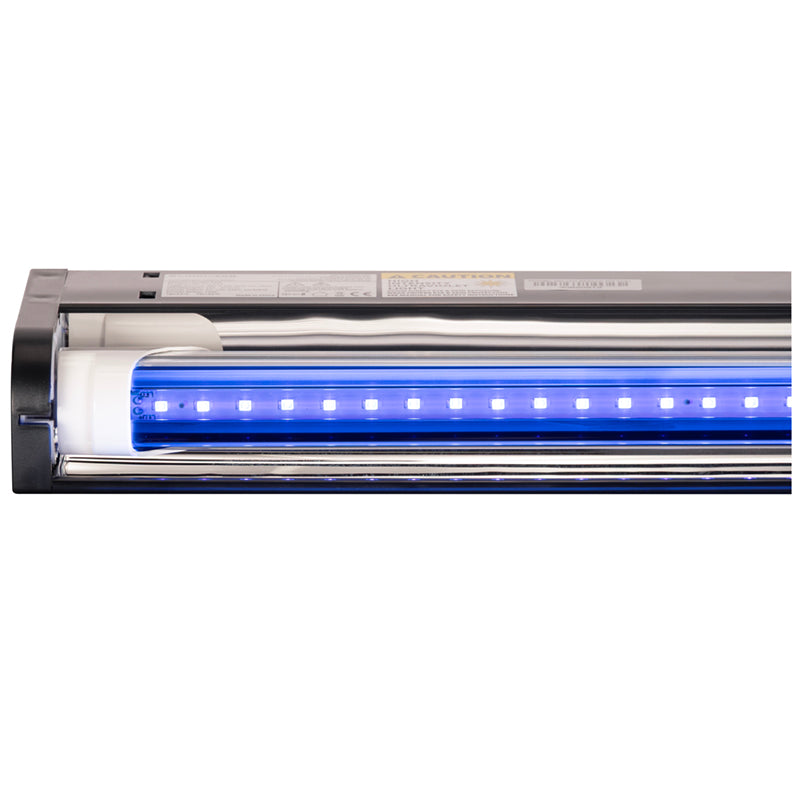

  • 48 x 0.3W SMD UV LEDs
  • Total Power: 14.4W (LED output)
  • Wavelength: 395–410nm
  • Beam Angle: 120°


Performance:

  • Life Expectancy: 50,000 hours
  • Low Heat Output
  • Low Power Consumption

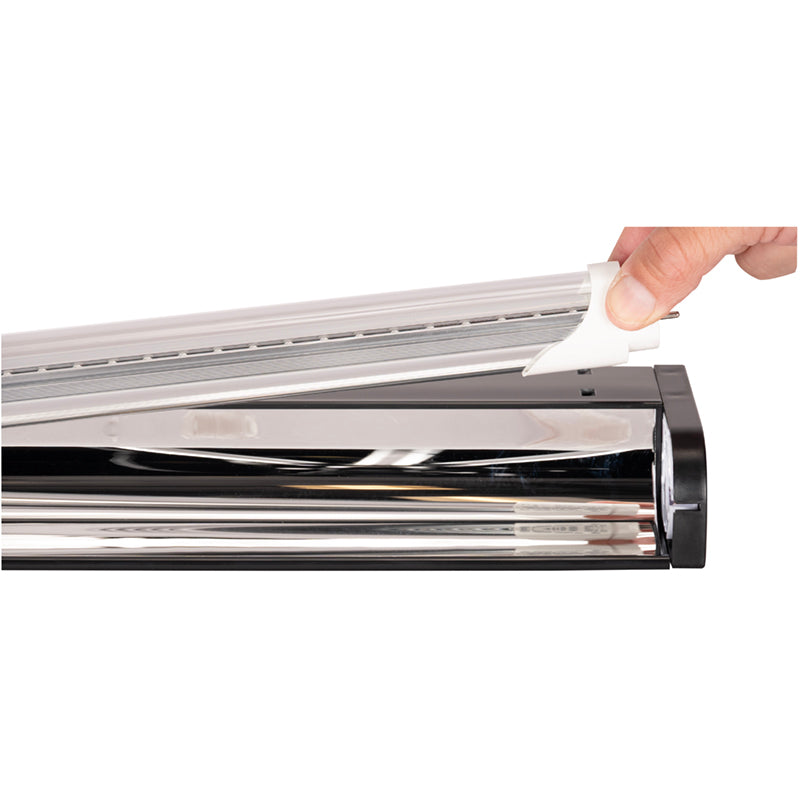

  • Replaceable UV LED Lamp


Electrical:

  • Multi-Voltage Operation: AC 100–240V, 47/63Hz
  • Power Draw: 10W

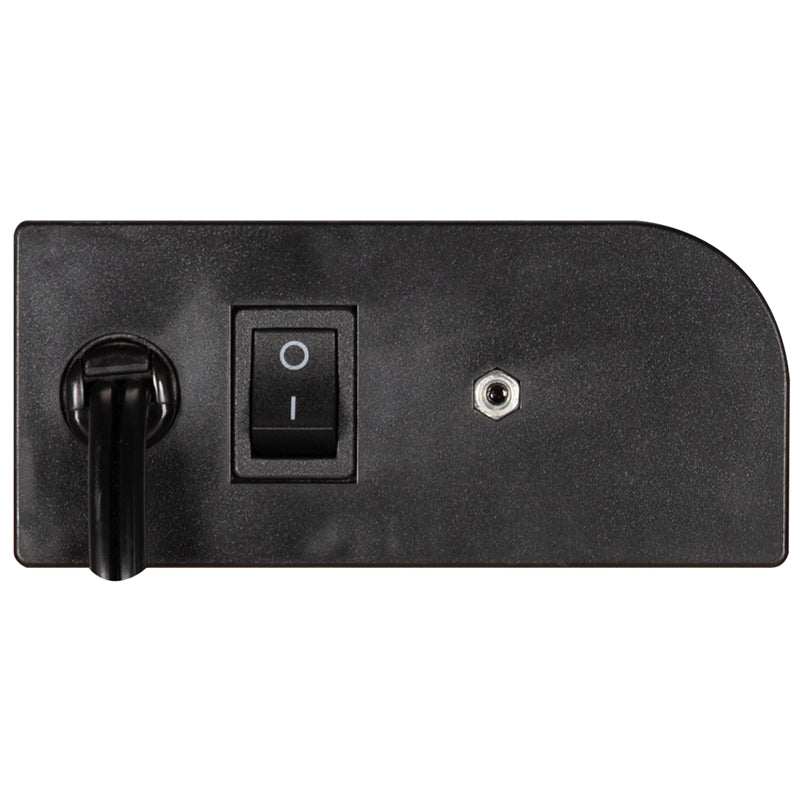

  • On/Off Switch
  • Attached Power Cord Length: 3 ft. (1M)


Physical:

  • Dimensions: (L x W x H): 24” x 1.65” x 3.7” 612 x 42 x 94mm
  • Weight: 1.1 lb. (0.5 kg)
  • Housing: Durable polymer housing
  • Built-In Mounting Points


Specifications are subject to change without notice.

Downloads

Filename Document type File type
UVLED 24EL - User Manual User Manual PDF
