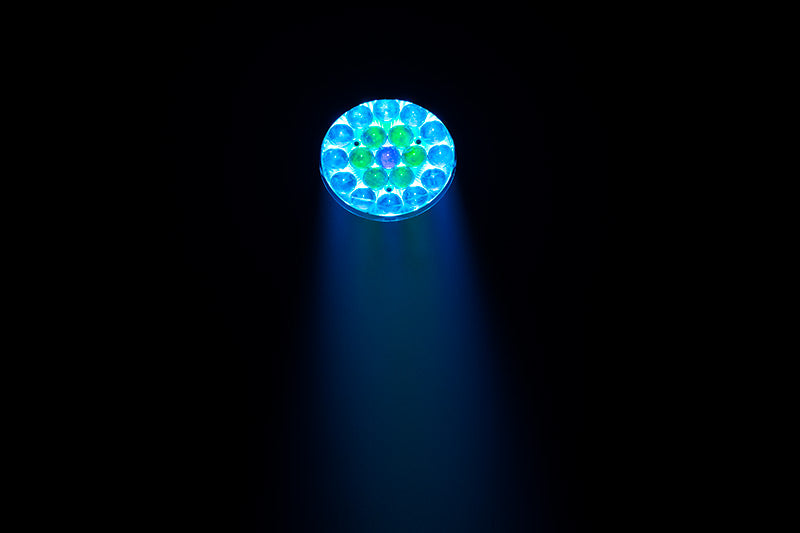

The Eliminator Mega Par Z Wash is a feature-packed LED wash fixture designed to provide bright, even color washes with exceptional flexibility. Equipped with 19 high-output 15W RGBW 4-in-1 LED's, it produces rich saturated colors, smooth pastels, and brilliant white tones with excellent color mixing for a wide variety of lighting applications.
Its motorized 10° to 60° zoom allows users to quickly adapt from tight beam effects to wide stage washes, making it equally effective for concerts, theatrical productions, uplighting, and event lighting. Three independently controllable RGBW zones enable creative chases, pixel-style effects, and dynamic color animations without the need for multiple fixtures.
The Mega Par Z Wash offers multiple operating modes including DMX512, Primary-Secondary, Auto, Sound Active, and Static Mode, making it suitable for both programmed lighting systems and standalone operation. Smooth 0–100% linear dimming ensures seamless fades, while the onboard digital display provides easy menu navigation and setup.
Built for reliable indoor use, the fixture features locking power input/output connections, 3-pin XLR DMX connectivity, universal auto-switching power supply, and a durable compact housing that is ideal for touring, installations, and mobile entertainment professionals.
Mega Par Z Wash
The Eliminator Mega Par Z Wash is a feature-packed LED wash fixture designed to provide bright, even color washes with exceptional flexibility. Equipped with 19 high-output 15W RGBW 4-in-1 LED's, it produces rich saturated colors, smooth pastels, and brilliant white tones with excellent color mixing for a wide variety of lighting applications.
Its motorized 10° to 60° zoom allows users to quickly adapt from tight beam effects to wide stage washes, making it equally effective for concerts, theatrical productions, uplighting, and event lighting. Three independently controllable RGBW zones enable creative chases, pixel-style effects, and dynamic color animations without the need for multiple fixtures.
The Mega Par Z Wash offers multiple operating modes including DMX512, Primary-Secondary, Auto, Sound Active, and Static Mode, making it suitable for both programmed lighting systems and standalone operation. Smooth 0–100% linear dimming ensures seamless fades, while the onboard digital display provides easy menu navigation and setup.
Built for reliable indoor use, the fixture features locking power input/output connections, 3-pin XLR DMX connectivity, universal auto-switching power supply, and a durable compact housing that is ideal for touring, installations, and mobile entertainment professionals.
Specifications
SOURCE:

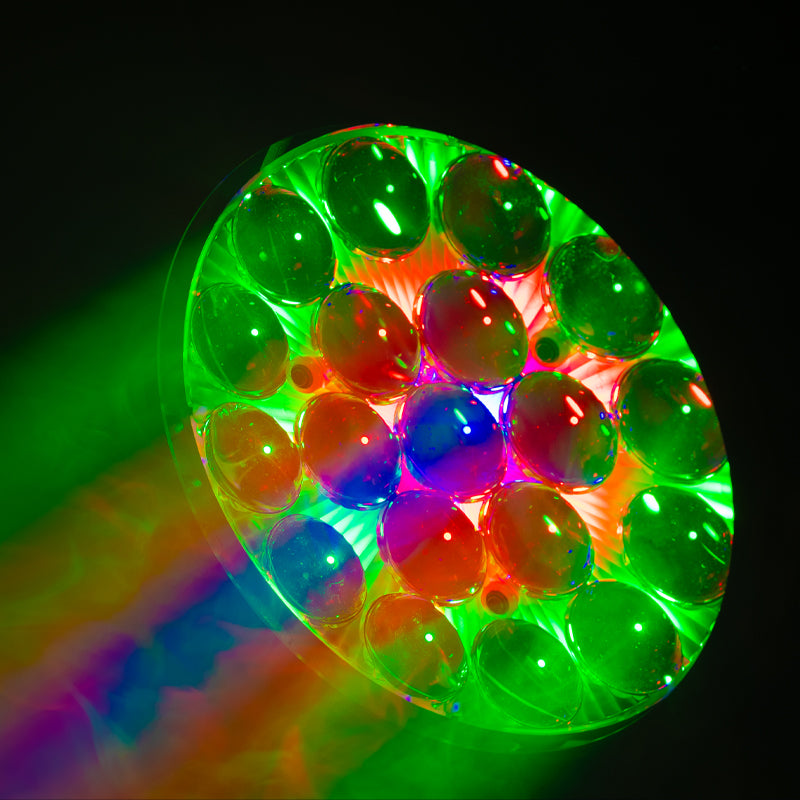

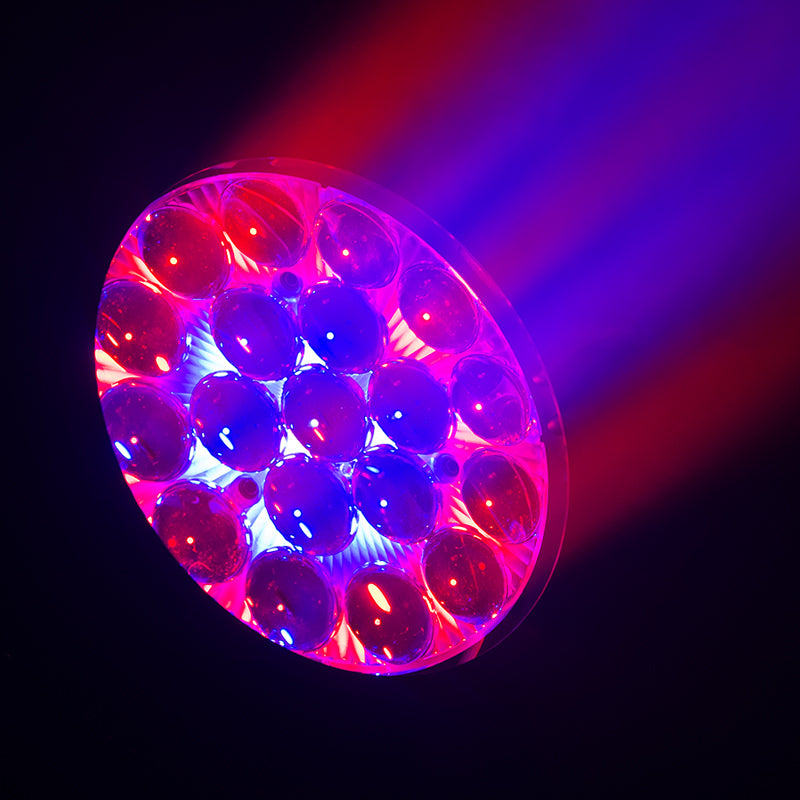

- 19 × 15W RGBW 4-in-1 LEDs
- 50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA:
- RGBW Color Mixing
- Pure Color Output
- Smooth Wash Output
COLOR:
- RGBW 4-in-1 LED Color Mixing
- Three Independently Controllable RGBW Zones
EFFECTS:

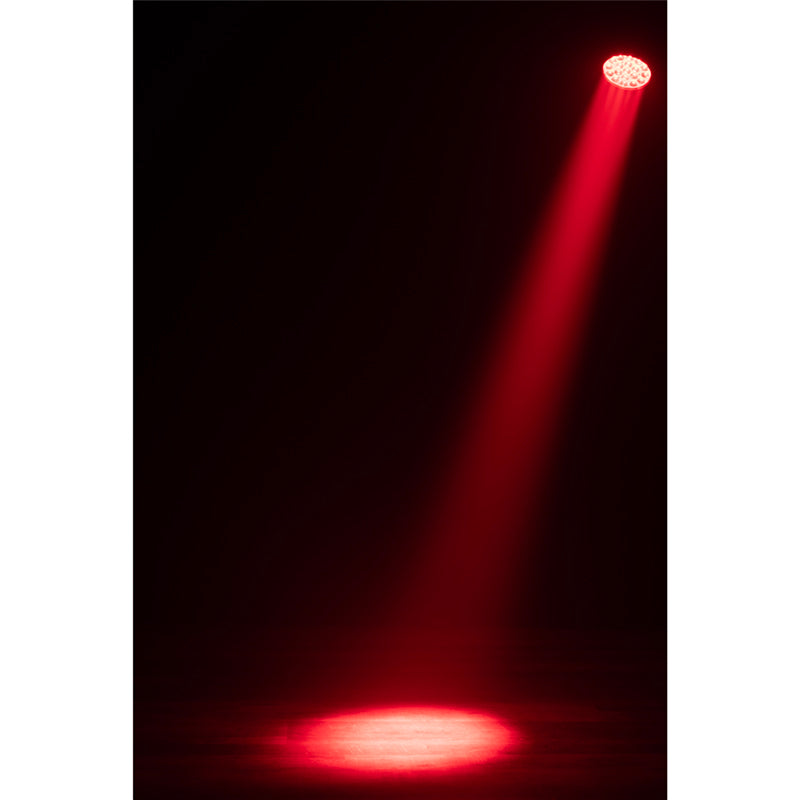

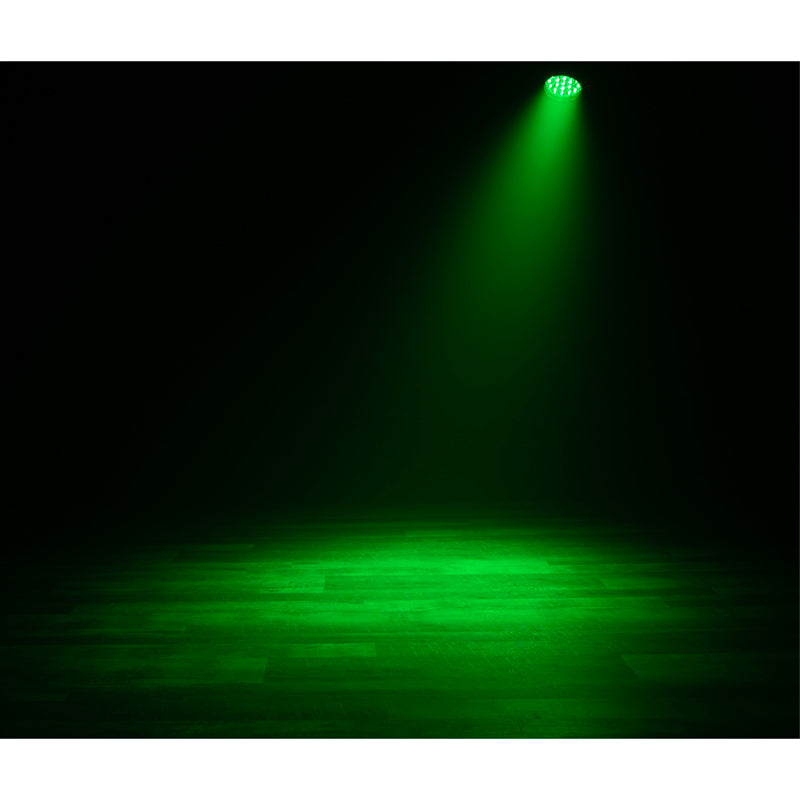

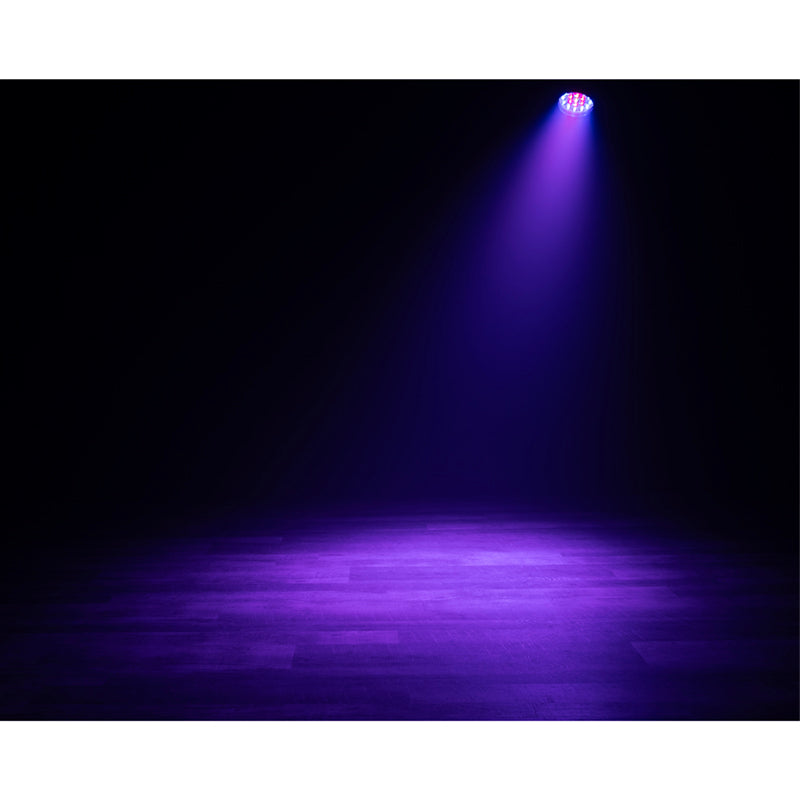

- Motorized Zoom: 10° ~ 60°
- 0–100% Linear Electronic Dimming
- Smooth Color Mixing
- Static Color Mode
CONTROL / CONNECTIONS:
- 2 DMX Channel Modes (10 / 18 Channels)
- DMX512
- Primary-Secondary Mode
- Auto Run Mode
- Sound Active Mode

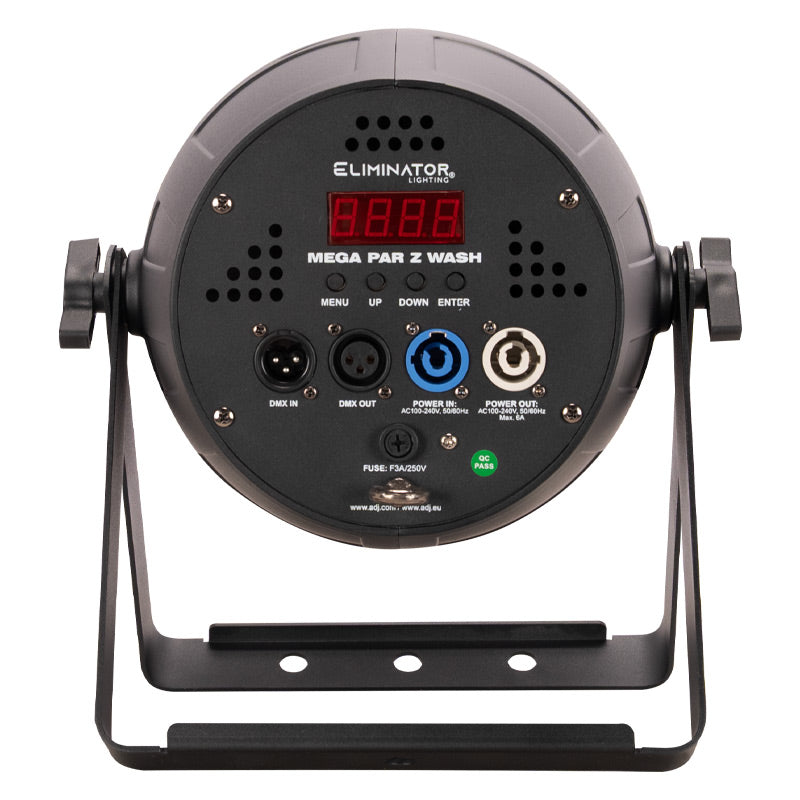

- 4-digit, 7-segment LED display
- 3-pin XLR DMX In/Out
- Indoor Locking Power In/Out
SIZE / WEIGHT:
- Length: 8.9" (225mm)
- Width: 10.8" (275mm)
- Height: 13.3" (337mm)
- Weight: 9.92 lbs. (4.5kg)
ELECTRICAL / THERMAL:
- AC 100-240V, 50/60Hz
- Max Power Consumption: 200W
TECHNICAL DATA:
- Indoor Use Only
APPROVALS / RATINGS:
- IP20
Specifications are subject to change without notice.
