Mega Bar RGBA EP

Name: Mega Bar RGBA EP
Brand: Eliminator
SKU: MEG045
Availability: InStock

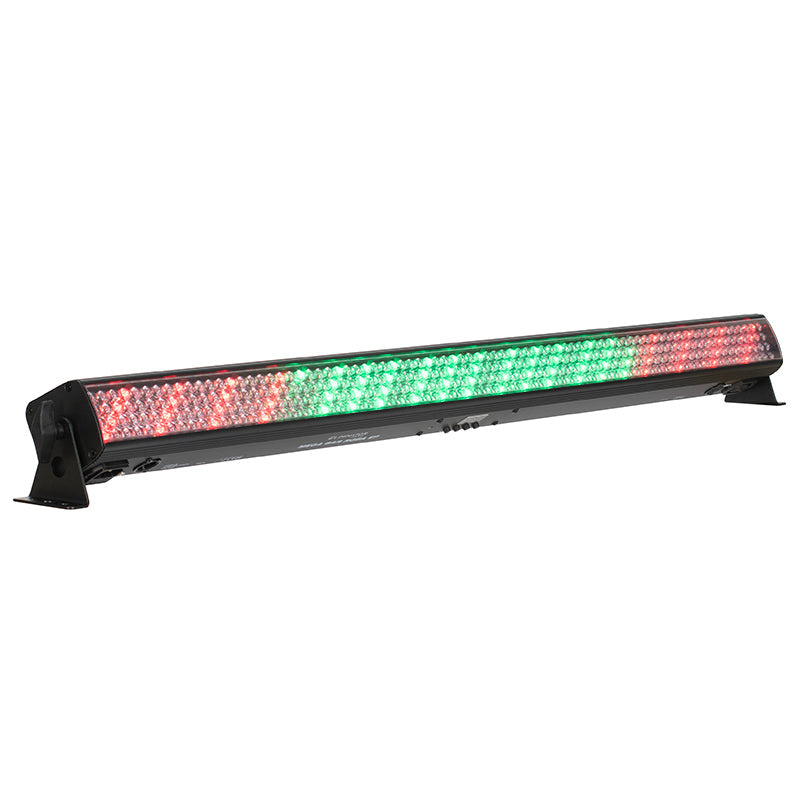

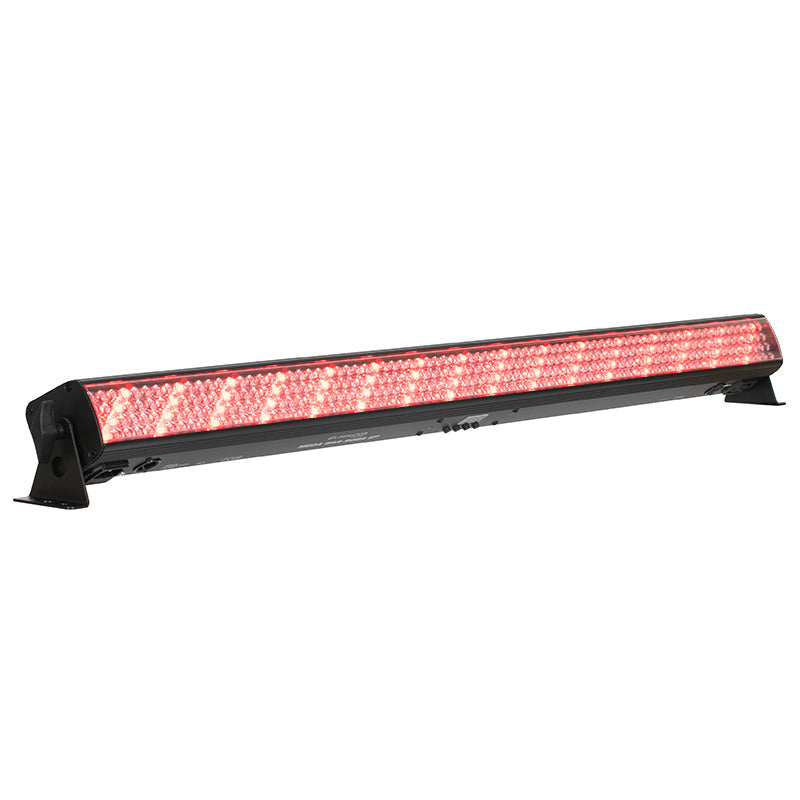

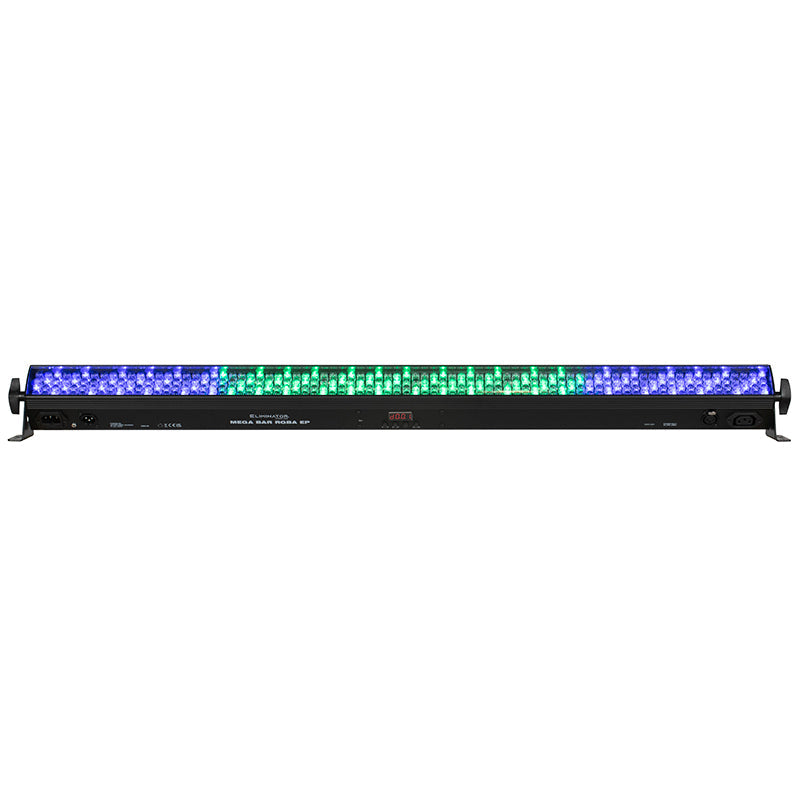

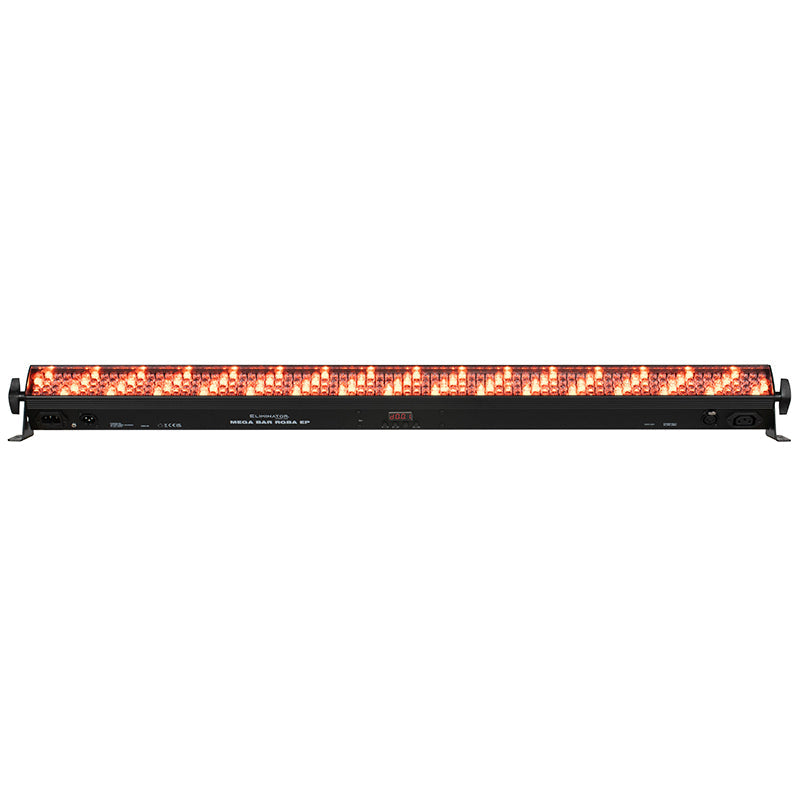

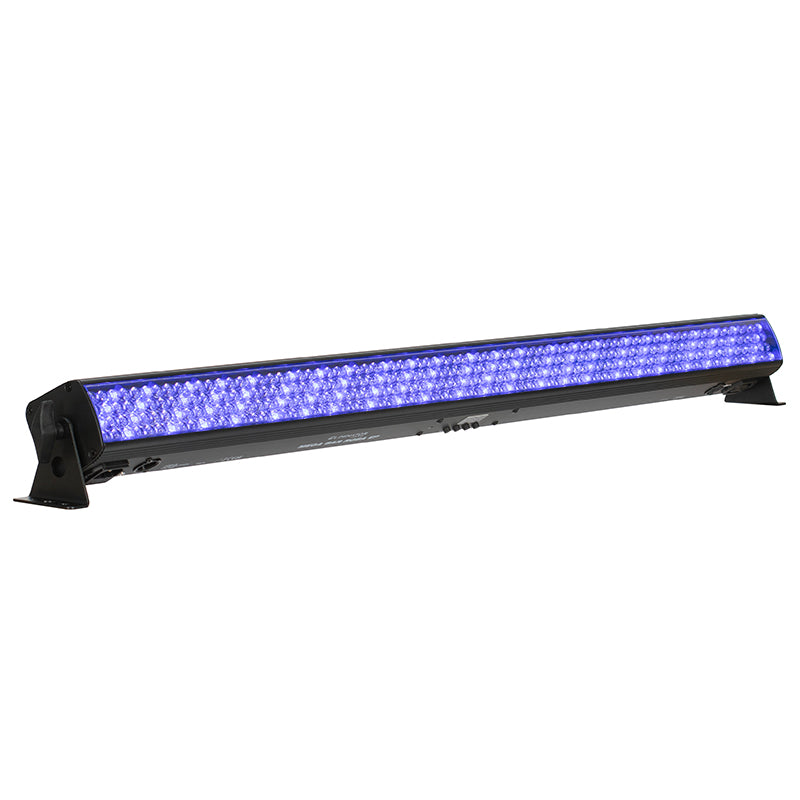

The Eliminator Lighting Mega Bar RGBA EP is a high quality, durable 42-inch RGBA LED linear fixture designed for high quality color mixing for stage or wall washing.

UPC: 810087371944

SKU: MEG045

Mega Bar RGBA EP

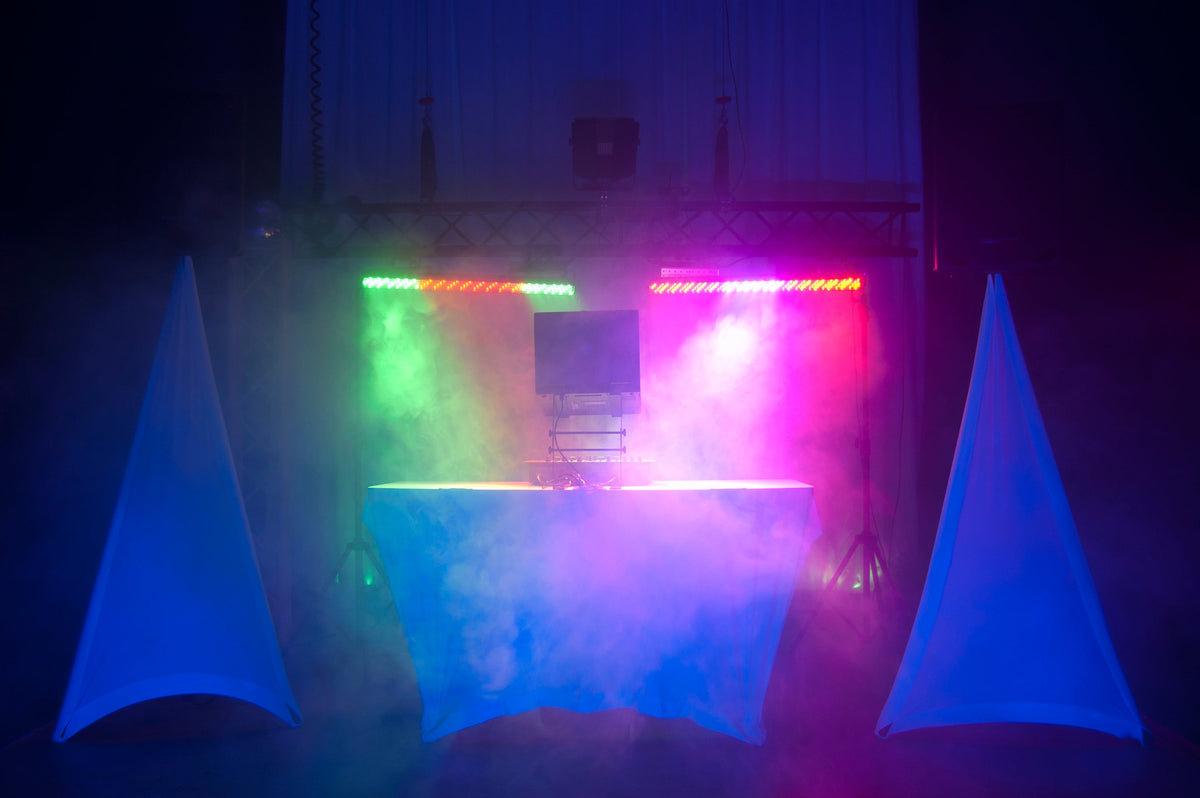

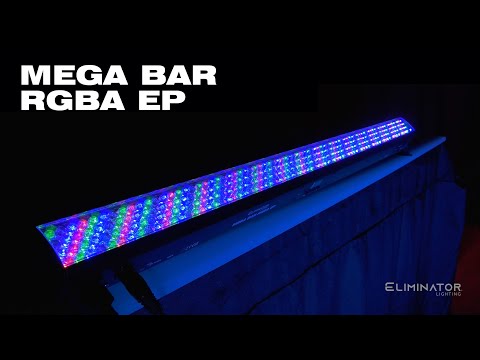

The Eliminator Lighting Mega Bar RGBA EP — your affordable solution to illuminate any event with unmatched style. This 42-inch linear fixture boasts 320 10mm RGBA LEDs, providing high-quality, durable wash lighting for stages, walls and uplighting.

Achieve stunning effects with variable RGBA color mixing, offering an extensive color palette. The Mega Bar RGBA EP is versatile, with 48 built-in color macros, LED pulse and strobe effects, and flicker-free performance. With a 30-degree beam angle, it delivers 650 LUX @ 2M and 275 LUX @ 4M.

Control the Mega Bar RGBA EP effortlessly using the 4-button LED display, DMX-512 protocol, sound activation, or the optional ADJ RFC wireless remote. Daisy-chain power and DMX data with convenient socket mounts and enjoy flexible mounting options with included brackets. Multiple fixtures may be linked together providing seamless color output with the built-in magnetic end caps.

Built to last with a 50,000-hour LED lifespan, this 42-inch powerhouse is perfect for any venue with low maintenance, low power draw and solid stage performance. Illuminate your events with the Mega Bar RGBA EP and experience vibrant, dynamic lighting like never before.

Mega Bar RGBA EP

The Eliminator Lighting Mega Bar RGBA EP — your affordable solution to illuminate any event with unmatched style. This 42-inch linear fixture boasts 320 10mm RGBA LEDs, providing high-quality, durable wash lighting for stages, walls and uplighting.

Achieve stunning effects with variable RGBA color mixing, offering an extensive color palette. The Mega Bar RGBA EP is versatile, with 48 built-in color macros, LED pulse and strobe effects, and flicker-free performance. With a 30-degree beam angle, it delivers 650 LUX @ 2M and 275 LUX @ 4M.

Control the Mega Bar RGBA EP effortlessly using the 4-button LED display, DMX-512 protocol, sound activation, or the optional ADJ RFC wireless remote. Daisy-chain power and DMX data with convenient socket mounts and enjoy flexible mounting options with included brackets. Multiple fixtures may be linked together providing seamless color output with the built-in magnetic end caps.

Built to last with a 50,000-hour LED lifespan, this 42-inch powerhouse is perfect for any venue with low maintenance, low power draw and solid stage performance. Illuminate your events with the Mega Bar RGBA EP and experience vibrant, dynamic lighting like never before.

Specifications

Source:

• 1-Meter (42-inch) indoor Linear Fixture with 320, 10mm RGBA LED's (64 Red, 96 Green, 96 Blue 64 Amber)

• Beam angle: 30-degree

• Long life LED (Rated at 50,000 hrs.)

• Light output: 650 LUX @ 2M; 275 LUX @ 4M (30-degree beam)

Effects:

• Variable RGBA color mixing offers a seemingly unlimited color palette - Great for Stage or Wall Washing!

• 48 built-in Color Macros

• LED pulse strobe effect

• Flicker Free

• Refresh Rate: 410Hz

• Electronic Dimming: 0 - 100%

Control:

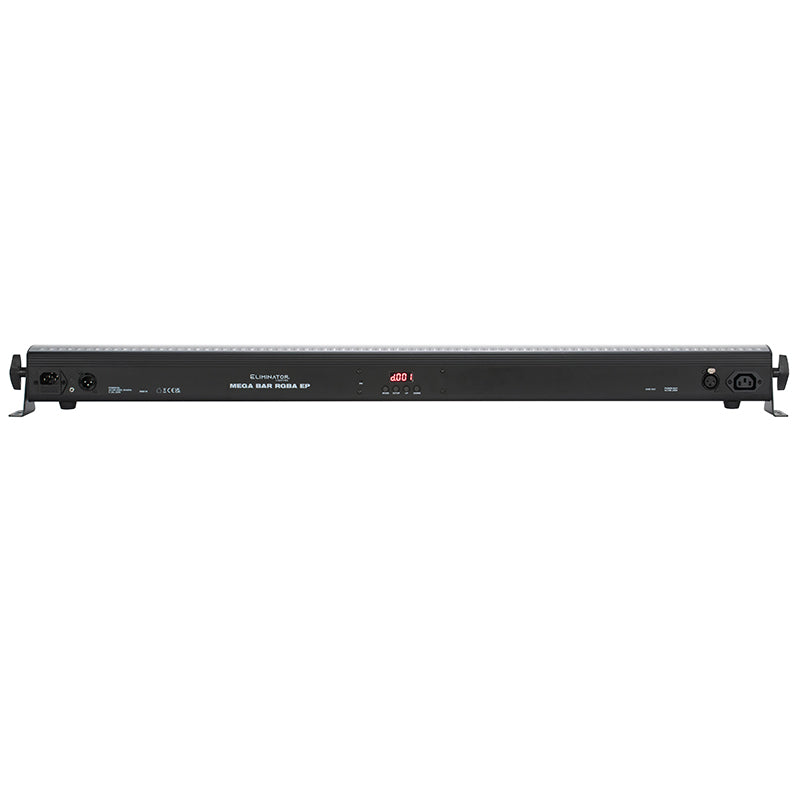

• 4-button LED display on rear panel

• 7 DMX Channel modes: 4, 6, 7, 9, 10, 18 or 34 channel modes

• 6 Operational modes: Manual Color Mode; Static Color Change Mode; Auto (Program Run) Mode; Sound Active Mode; RGBA Manual Control Mode and DMX-512 Mode

• DMX-512 Protocol

• Compatible with ADJ RFC wireless remote control (sold separately)

Connections:

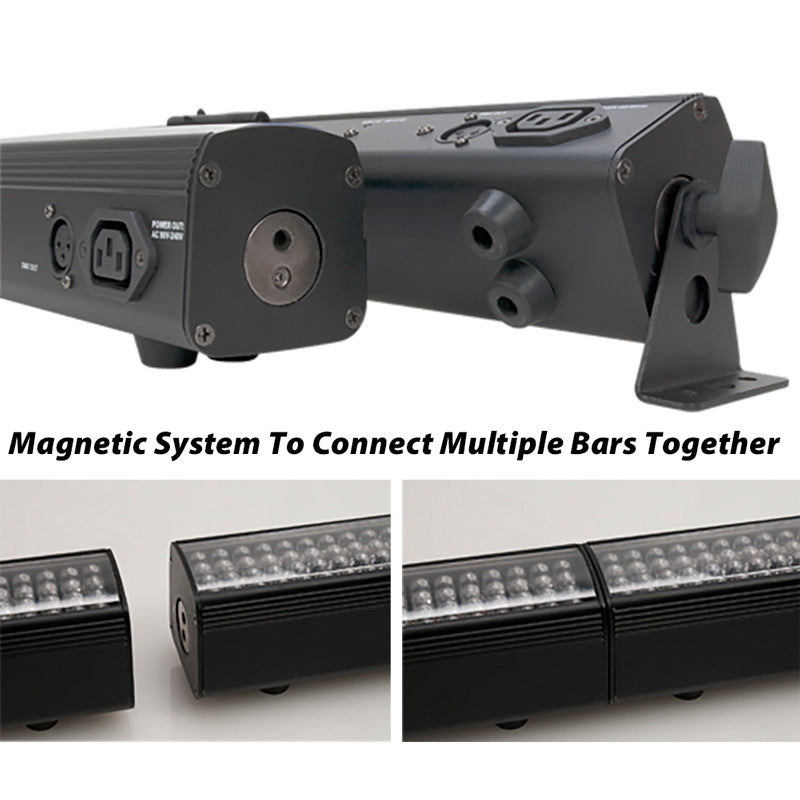

• Magnetic End Caps Designed to Ensure the Precise Alignment of Multiple Bars

• 3-pin DMX Input/Output

• IEC In/Out AC outlets on rear to daisy chain power (up to 20 units)

• With Wired Digital Communication Network

Electrical:

• Multi-voltage: 100-240V, 50/60Hz

• Power Draw: 32W max

Dimensions / Weight:

• Dimensions (LxWxH): 41.75” x 3” x 5.75” / 1060 x 73 x 145mm

• Weight: 6 lbs. / 2.7 kg.

What’s Included:

• Includes mounting brackets to mount on a wall or set on the ground

• Power cable length: 1.8 meter (IEC)

Specifications are subject to change without notice.

Downloads

Filename	Document type	File type
Mega Bar RGBA EP - DMX Traits	DMX Traits	PDF
Mega Bar RGBA EP - User Manual	User Manual	PDF
