LP 42 RGBW


The LP 42 RGBW is part of the LP “Lightweight Par” Series from Eliminator Lighting. Its powered by forty-two 1-watt RGBW LEDs with a 25-degree beam angle.
UPC: 818651026900SKU: LP 42 RGBW

LP 42 RGBW

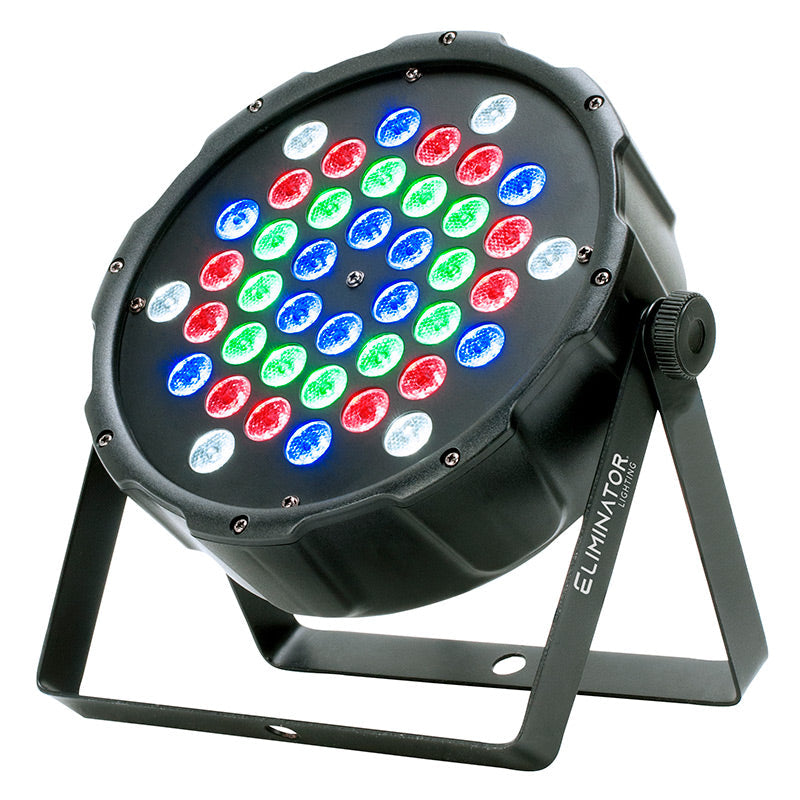

The LP 42 RGBW is part of the LP “Lightweight Par” Series from Eliminator Lighting. Its powered by forty-two 1-watt LEDs (12x Red, 12x Green, 12x Blue & 6x White LEDs) with a 25-degree beam angle. It is made from durable plastic with a metal scissor yoke. The LP 42 RGBW is designed for permanent of portable use. It’s great for installation in small stages, lounges, bars and fun centers, or one-off use for events or mobile DJs. Plus, its small enough to fit inside square truss for a ‘truss warming’ effect.

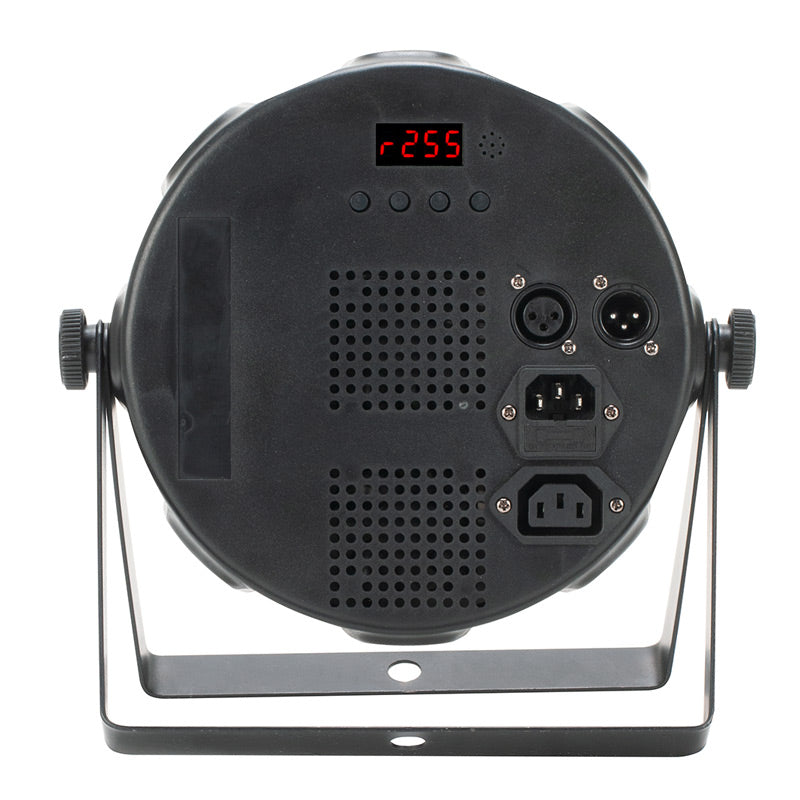

The LP 42 RGBW may be used in sound active mode or connected with DMX cables to use the built-in programs and linkable features. It has 3-pin DMX in/out, as well as, IEC in/out connections to daisy chain the power from one fixture to another. There is also a 4-button function menu with and LED display to help navigate through the different features.

LP 42 RGBW

The LP 42 RGBW is part of the LP “Lightweight Par” Series from Eliminator Lighting. Its powered by forty-two 1-watt LEDs (12x Red, 12x Green, 12x Blue & 6x White LEDs) with a 25-degree beam angle. It is made from durable plastic with a metal scissor yoke. The LP 42 RGBW is designed for permanent of portable use. It’s great for installation in small stages, lounges, bars and fun centers, or one-off use for events or mobile DJs. Plus, its small enough to fit inside square truss for a ‘truss warming’ effect.
The LP 42 RGBW may be used in sound active mode or connected with DMX cables to use the built-in programs and linkable features. It has 3-pin DMX in/out, as well as, IEC in/out connections to daisy chain the power from one fixture to another. There is also a 4-button function menu with and LED display to help navigate through the different features.

Specifications

• LEDs: 42x 1-watt LEDs (12x Red, 12x Green, 12x Blue 6x White LEDs)
• Beam angle: 25-degrees
• LUX: 3600 @ 2M
• DMX channels: 4 or 8 selectable
• Static color, color change, fade, auto, sound active and Primary/Secondary modes
• 0-100% dimming and variable strobe
• 4 push button menu with LED display
• Scissor yoke included - allows for multiple rigging or floor standing applications
• 3-pin DMX In/Out
• IEC In/Out connections to daisy chain power
• Fan cooled
• Power consumption: 42W max
• Multi-voltage power: 100~240V, 50/60Hz
• Fuse: F2A 250V
• Dimensions (LxWxH): 9.9"x9.9"x3.5" / 250x250x90mm
• Weight: 3.7 lbs. / 1.7kg

Downloads

Filename Document type File type
LP 42 RGBW Cut Sheet Cut Sheet PDF
LP 42 RGBW User Manual User Manual PDF
