LP 12 HEX
Lightweight LED Par powered by twelve 5W HEX (6-IN-1) LEDs. 25-degree beam angle. Includes scissor yoke. Designed for portable use or permanent installation.
LP 12 HEX
Available Beginning of July 2019

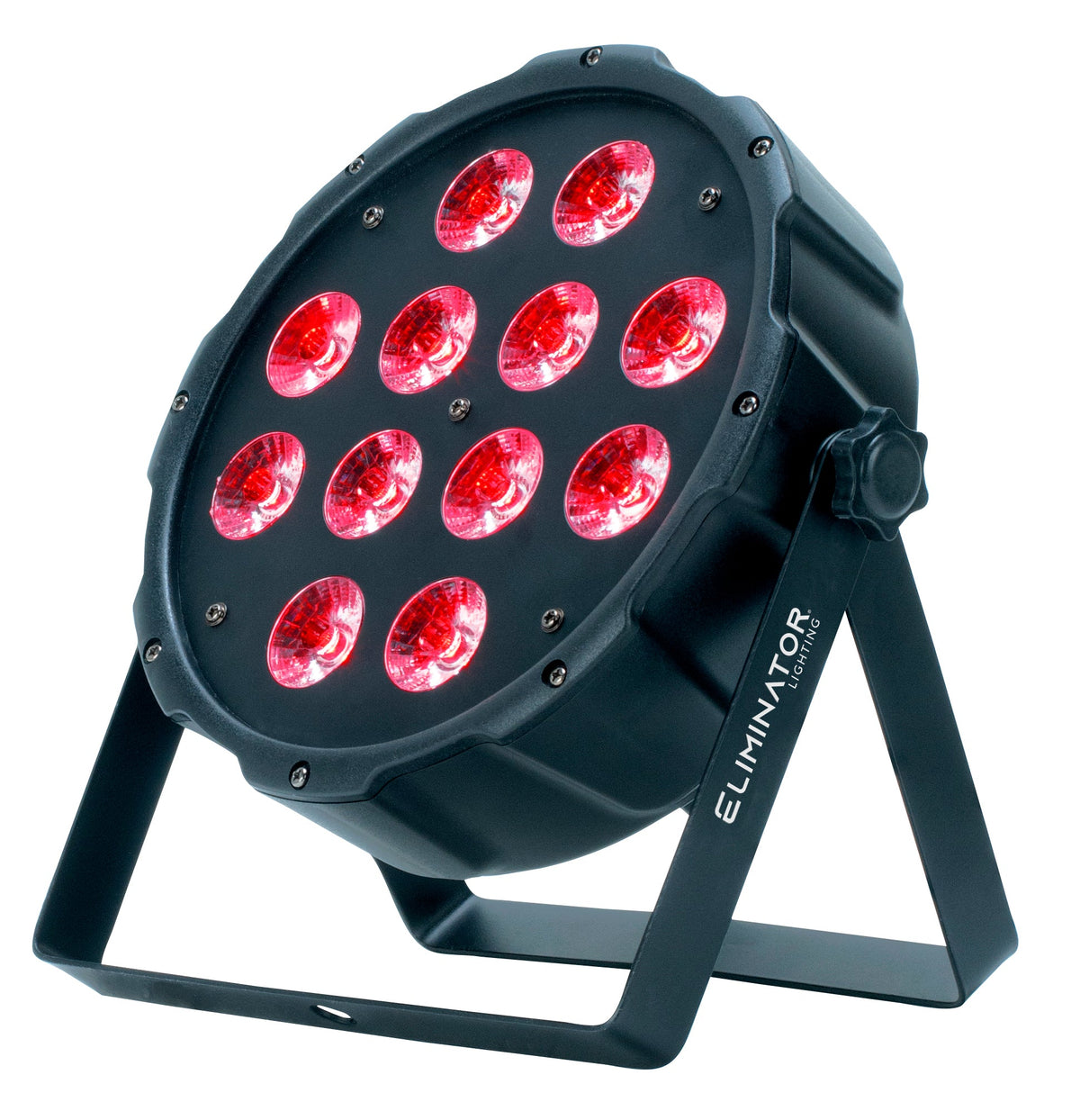

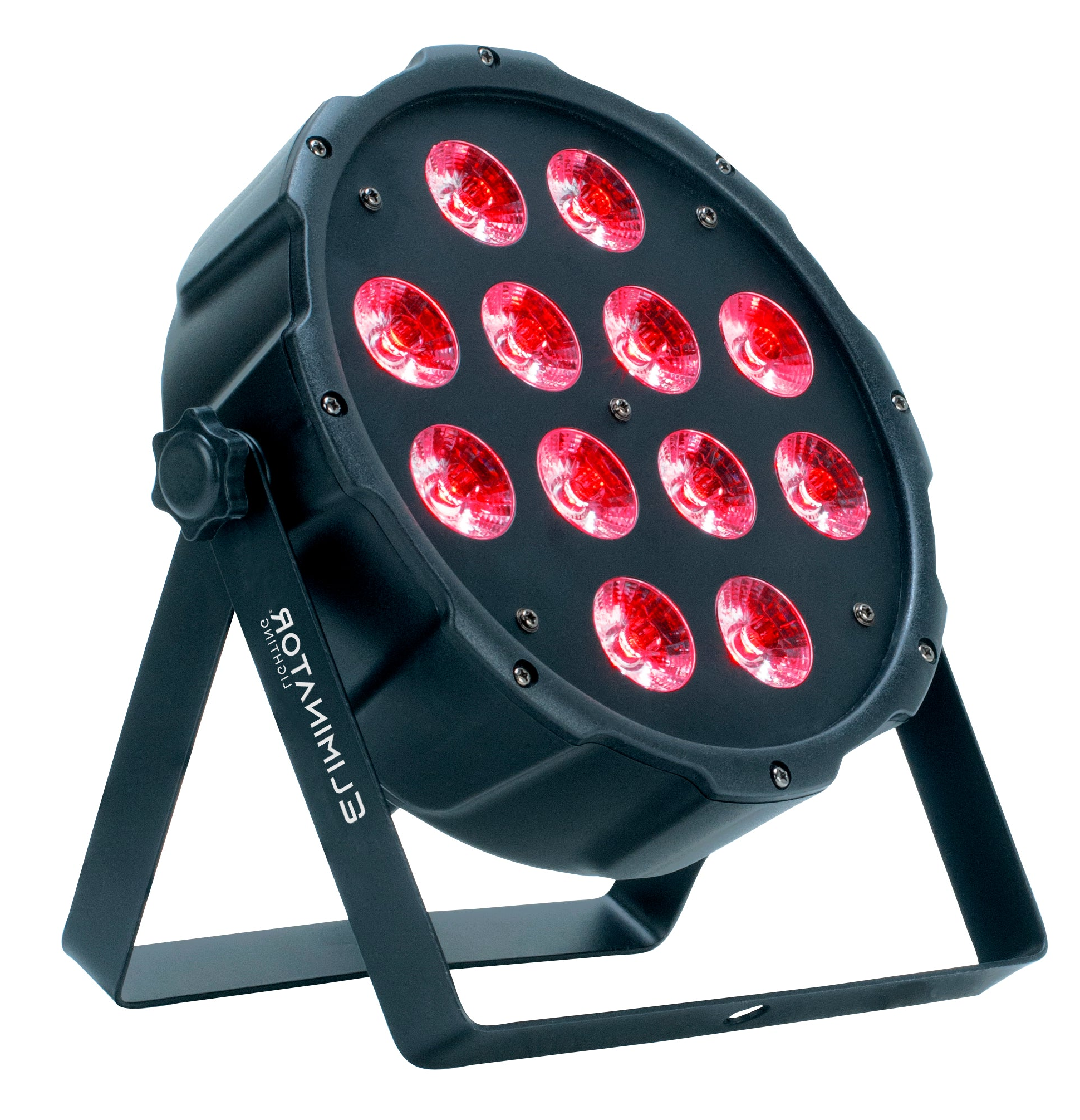

The LP 12 HEX is part of the LP “Lightweight Par” Series from Eliminator Lighting. Its powered by twelve 5-watt HEX (RGBWA+UV) LEDs with a 25-degree beam angle. It is made from durable plastic with a metal scissor yoke. The LP 12 HEX is designed for permanent of portable use. It’s great for installation in small stages, lounges, bars and fun centers, or one-off use for events, mobile DJs, and its small enough to fit inside square truss for a ‘truss warming’ effect.

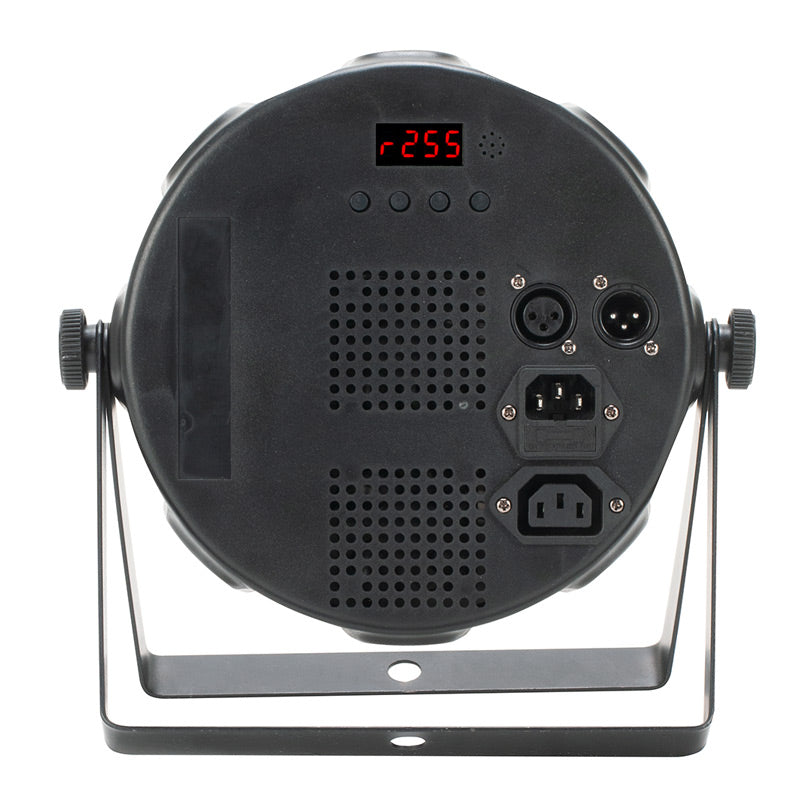

The LP 12 HEX may be used in sound active mode or connected with DMX cables to use the built-in programs and linkable features. It has 3-pin DMX in/out, as well as, IEC in/out coneections to daisy chain the power from one fixture to another. There is also a 4-button function menu with and LED display to help navigate though the different features.
LP 12 HEX
Available Beginning of July 2019
The LP 12 HEX is part of the LP “Lightweight Par” Series from Eliminator Lighting. Its powered by twelve 5-watt HEX (RGBWA+UV) LEDs with a 25-degree beam angle. It is made from durable plastic with a metal scissor yoke. The LP 12 HEX is designed for permanent of portable use. It’s great for installation in small stages, lounges, bars and fun centers, or one-off use for events, mobile DJs, and its small enough to fit inside square truss for a ‘truss warming’ effect.
The LP 12 HEX may be used in sound active mode or connected with DMX cables to use the built-in programs and linkable features. It has 3-pin DMX in/out, as well as, IEC in/out coneections to daisy chain the power from one fixture to another. There is also a 4-button function menu with and LED display to help navigate though the different features.
Specifications
• Beam angle: 25-degrees
• Ultra violet wavelength: 395-400nm
• DMX channels: 4 or 8 selectable
• Auto, sound active and Primary/Secondary modes
• 0-100% dimming and variable strobe
• 4 push button menu with LED display
• Scissor yoke included
• 3-pin DMX In/Out
• IEC In/Out connections to daisy chain power up to 8 units @ 120V
• Power consumption: 54W max
• Multi-voltage power: 100~240V, 50/60Hz
• Fuse: F2A 250V
• Dimensions (LxWxH): 10"x10"x4.25" / 250 x 250 x 105mm
• Weight: 3 lbs. / 1.2kg
Downloads
| Filename | Document type | File type |
|---|---|---|
| LP 12 HEX Cut Sheet | Cut Sheet | |
| Full On No UV - Blue (463nm) | Photometrics | |
| White - 7342K CRI 77 | Photometrics | |
| CRI - 8844K CRI 91.7 | Photometrics | |
| Red - 623nm | Photometrics | |
| Blue - 458nm | Photometrics | |
| LP 12 HEX - User Manual | User Manual | |
| Green - 528nm | Photometrics | |
| Amber - 592nm | Photometrics | |
| Full On - Blue (464nm) 49.2W | Photometrics | |
| UV - 417nm | Photometrics | |
| LP 12 Hex - Photometric IES Files | IES Files | ZIP |
| LP 12 Hex - Photometric Test Report | Photometrics | ZIP |
