Elektron Bar FX

Name: Elektron Bar FX
Brand: Eliminator
SKU: ELE180
Price: 649.99 USD
Availability: InStock

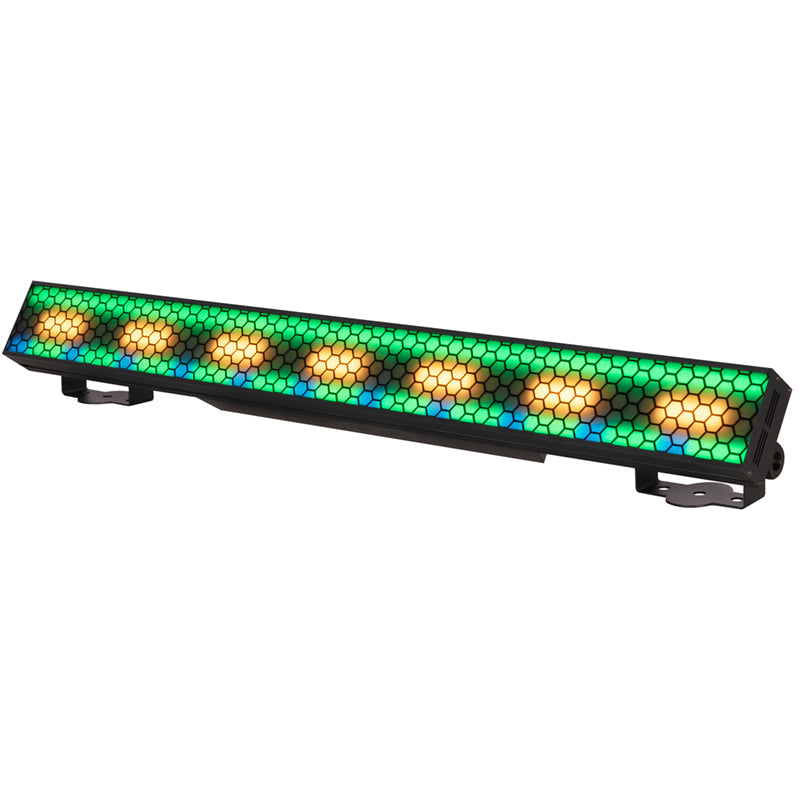

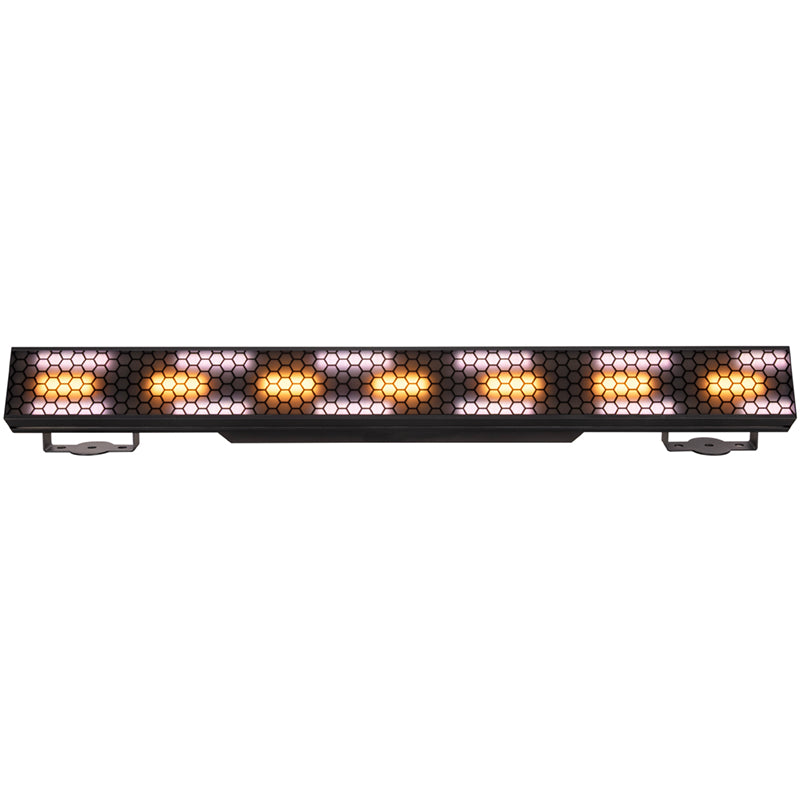

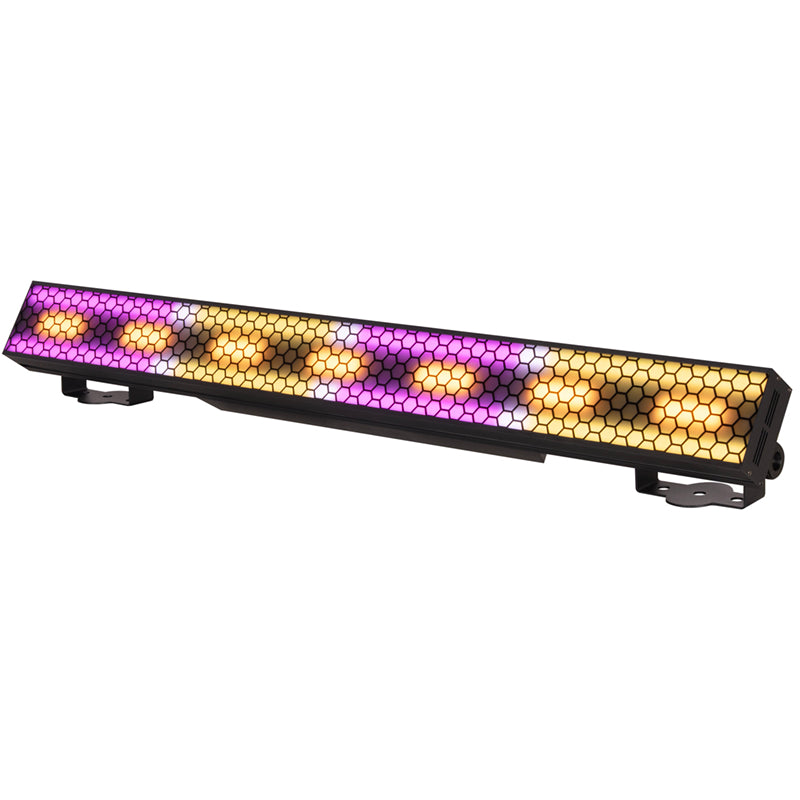

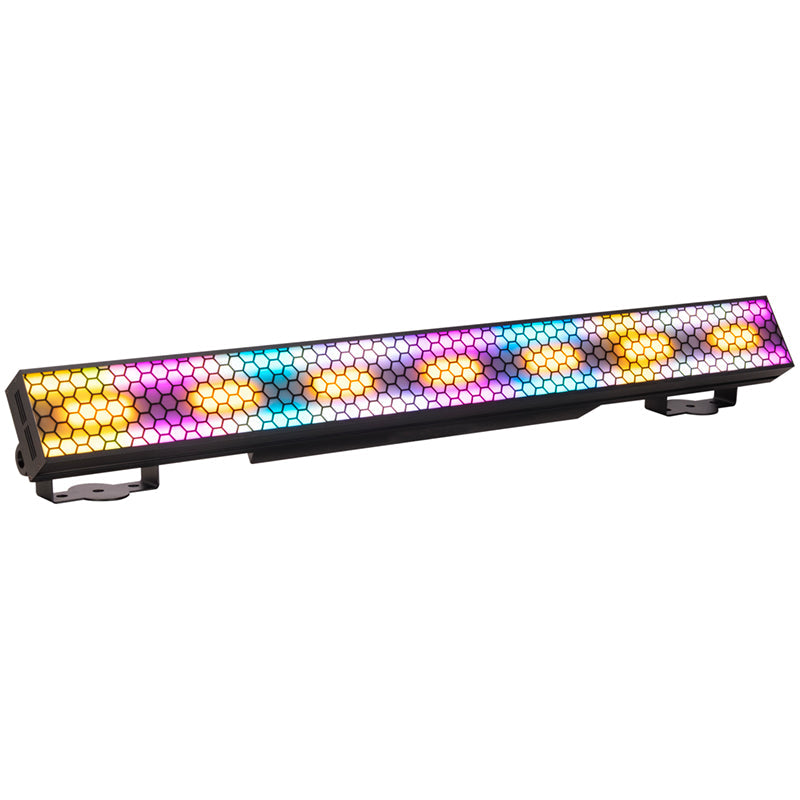

The Eliminator Lighting Elektron Bar FX is a 1-meter strobe and blinder that combines power and versatility. Featuring seven 40W amber LEDs (1800K) for brilliant blinder effects and 528 RGB SMD LEDs for vibrant color chases, it delivers stunning visual impact. With multiple DMX channel modes and various control options, this fixture empowers you to create dynamic lighting designs for any venue or mobile production.

UPC: 810087374297

SKU: ELE180

Elektron Bar FX

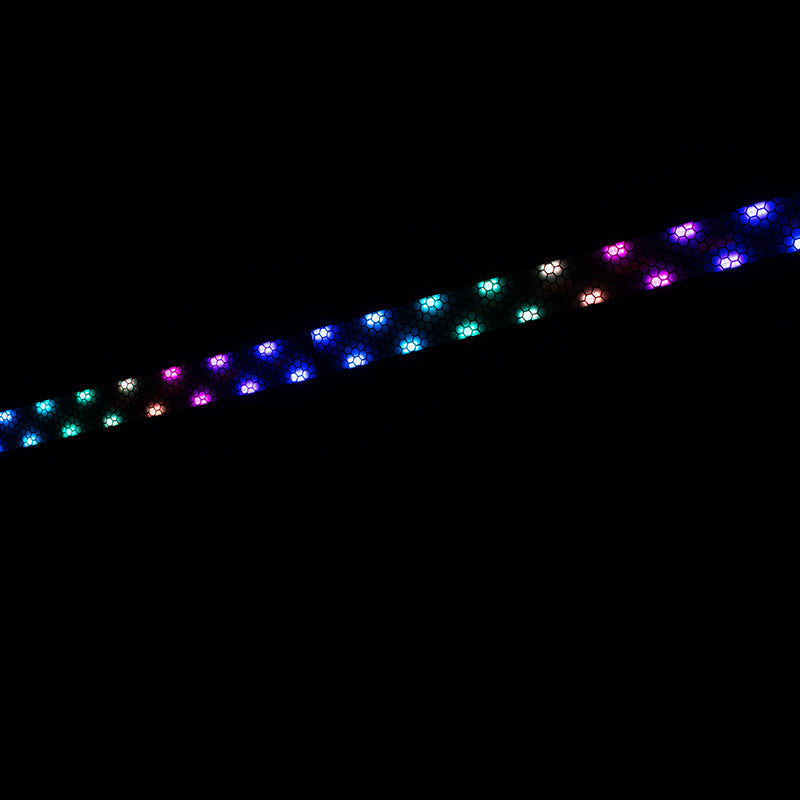

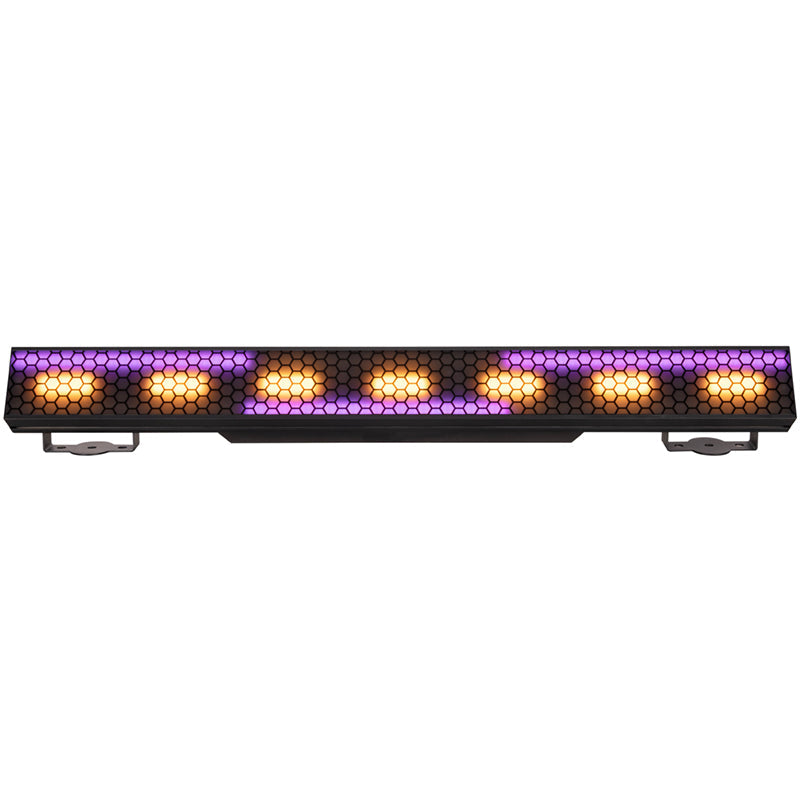

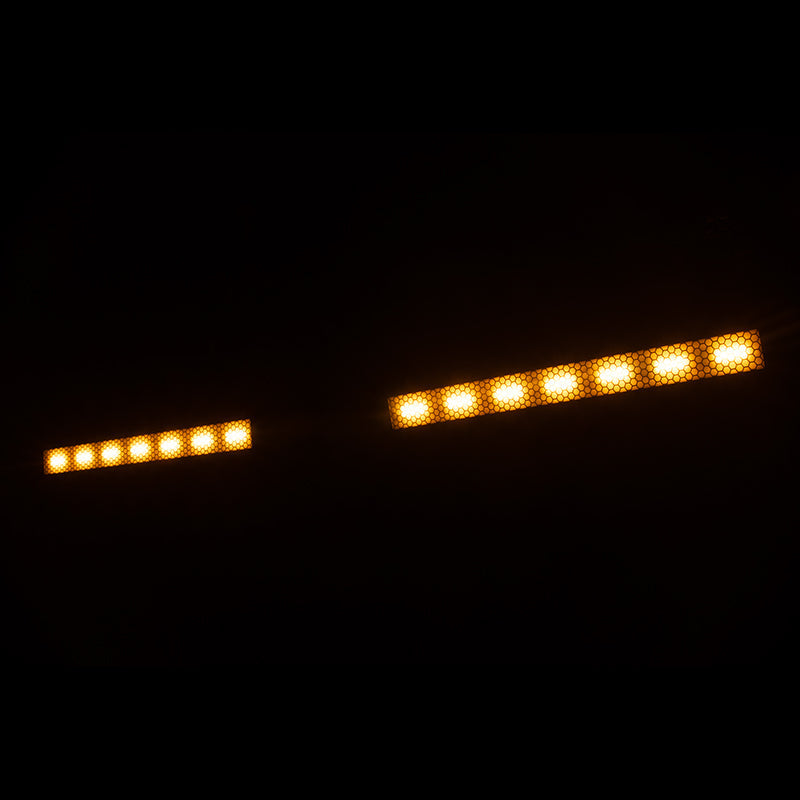

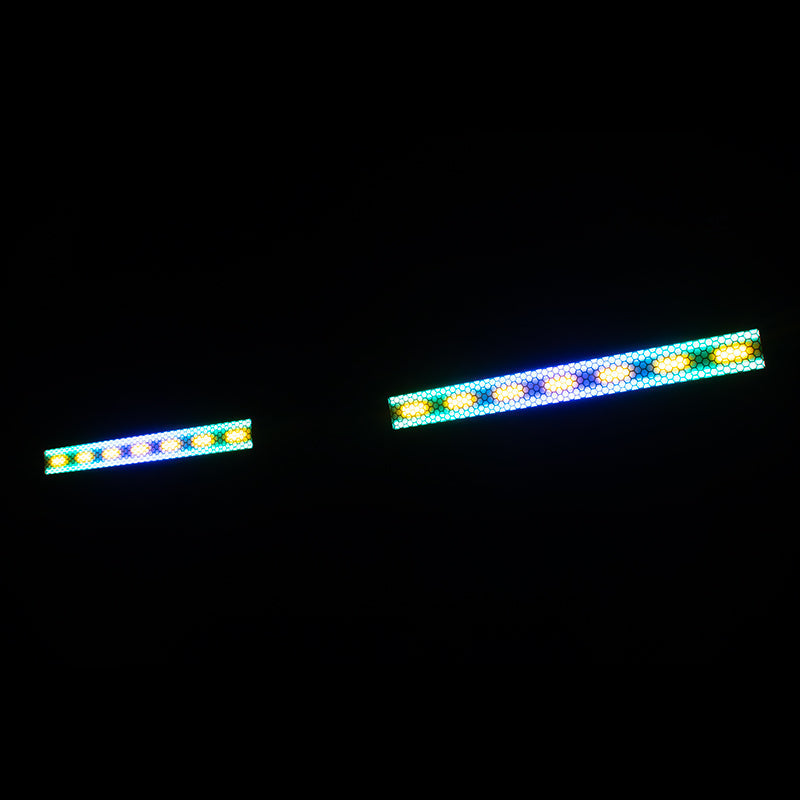

The Eliminator Lighting Elektron Bar FX is a versatile and powerful lighting effect, designed to bring vibrant colors and excitement illumination to any entertainment events, performances, or venues. Equipped with seven 40-Watt Amber (1800K) LEDs and 528x 0.5-Watt RGB (5050 SMD) LEDs, this fixture creates stunning visual effects, blending warm amber tones with dynamic RGB color chases and for endless creative possibilities.

With 60 built-in programs, a full dimming range (0–100%), and an adjustable strobe rate of 0–20 flashes per second, the Elecktron Bar FX gives you complete control over your lighting ambiance. Whether you're using DMX512, primary/secondary, or sound-activated modes, you can seamlessly adapt the effect to your needs with its 7, 12, or 20-channel DMX modes.

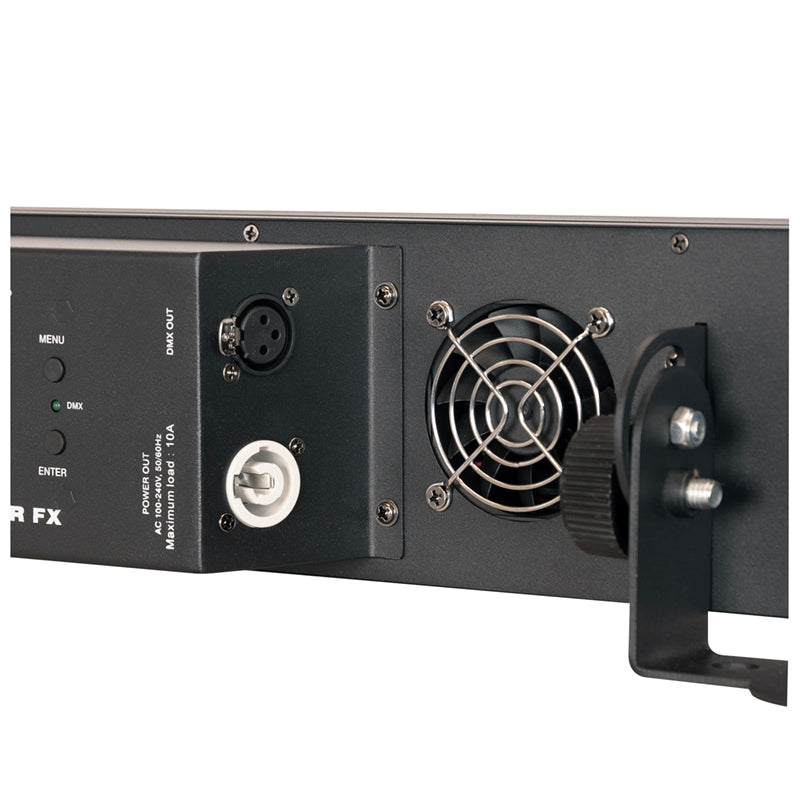

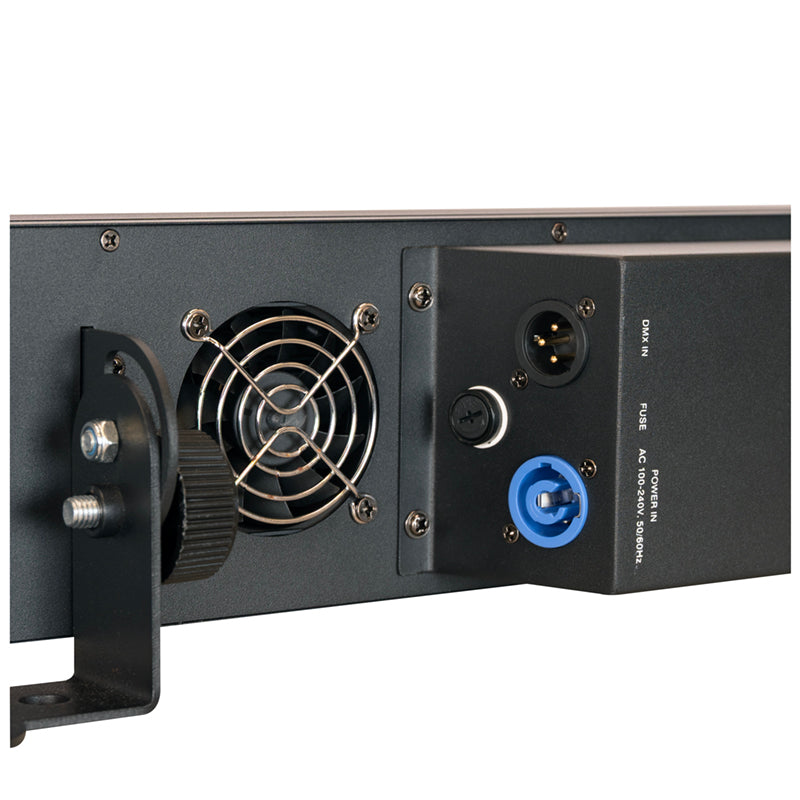

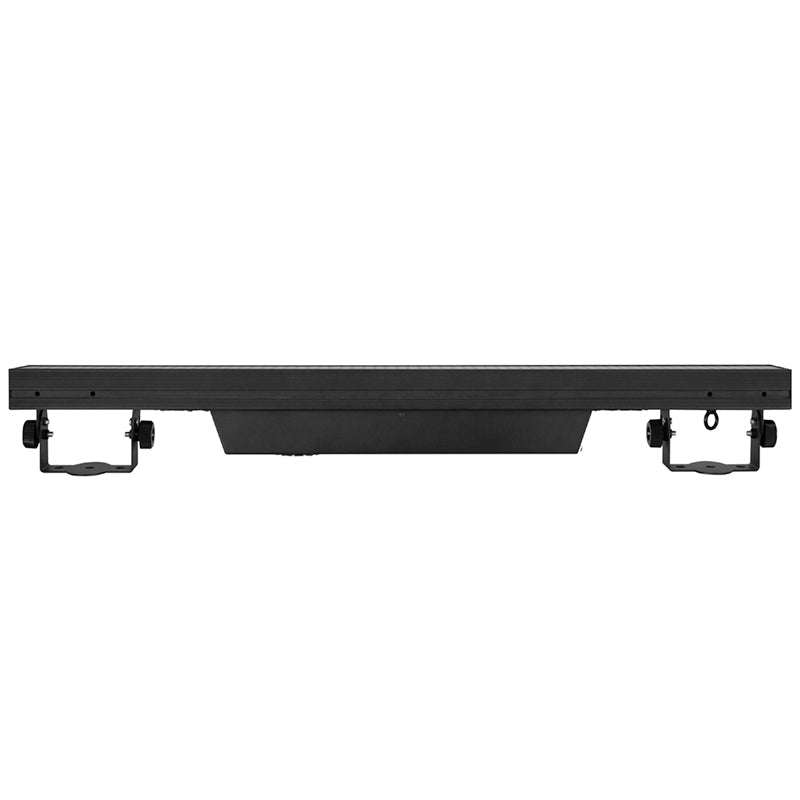

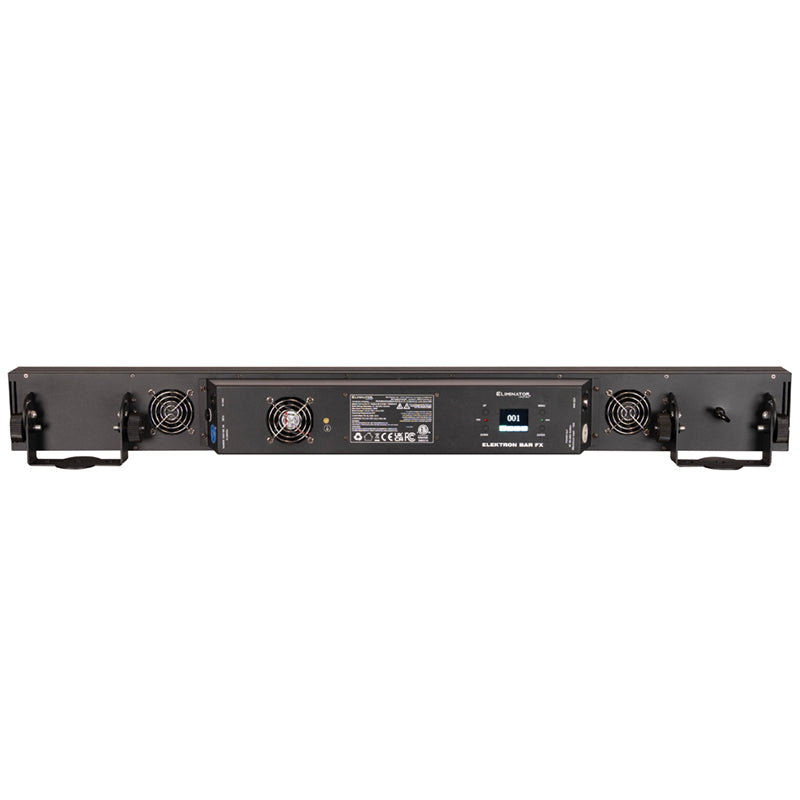

Engineered for reliability and convenience, the Elecktron Bar FX features advanced physical features such as locking In/Out power connectors, 3-pin DMX IN/OUT, and a 4-segment LCD display for intuitive operation. Its durable design is complemented by adjustable hanging brackets for floor or truss mounting. Plus, a 3-fan cooling system ensuring peak performance during extended use.

Compact and lightweight at just 10.5 lbs. (4.8Kg), with professional-grade components, this IP20-rated lighting effect is perfect for DJs, stage productions, or venues and event productions. Transform your space and create stunning visuals with the Elecktron Bar FX .

Elektron Bar FX

The Eliminator Lighting Elektron Bar FX is a versatile and powerful lighting effect, designed to bring vibrant colors and excitement illumination to any entertainment events, performances, or venues. Equipped with seven 40-Watt Amber (1800K) LEDs and 528x 0.5-Watt RGB (5050 SMD) LEDs, this fixture creates stunning visual effects, blending warm amber tones with dynamic RGB color chases and for endless creative possibilities.

With 60 built-in programs, a full dimming range (0–100%), and an adjustable strobe rate of 0–20 flashes per second, the Elecktron Bar FX gives you complete control over your lighting ambiance. Whether you're using DMX512, primary/secondary, or sound-activated modes, you can seamlessly adapt the effect to your needs with its 7, 12, or 20-channel DMX modes.

Engineered for reliability and convenience, the Elecktron Bar FX features advanced physical features such as locking In/Out power connectors, 3-pin DMX IN/OUT, and a 4-segment LCD display for intuitive operation. Its durable design is complemented by adjustable hanging brackets for floor or truss mounting. Plus, a 3-fan cooling system ensuring peak performance during extended use.

Compact and lightweight at just 10.5 lbs. (4.8Kg), with professional-grade components, this IP20-rated lighting effect is perfect for DJs, stage productions, or venues and event productions. Transform your space and create stunning visuals with the Elecktron Bar FX .

Specifications

Light Source:

• 7 x 40W 1800K (Amber) LEDs + 528 x RGB (0.5W, 5050 SMD) LEDs

• 50,000 Hour Average LED Life

Features:

• 7 x Amber LED Zones

• 66 x RGB LED Zones

• 60 Built-In Programs with Speed control

• 2 x mounting brackets

Control:

• Control Protocols: DMX512, Primary/Secondary Sound Active

• Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre Stage 2)

• Dim Curves: 4 Presets (Linear, Square Law, Inv Square Law and S Curve)

• 0-100% Smooth Dimming

• Shutter: 0-20 "Strobe" Flashes per second

• Refresh Rate: 900Hz - 25kHz

• With Wired Digital Communication Network

• Display: Digital (with 4 buttons)

Connections:

• Data: IP20-rated locking 3-pin DMX In/Out

• Power: IP20 Locking Power In/Out

Electrical:

• 100-240V 50Hz/60Hz (Auto Sensing)

• Max Power Consumption: 300W @120V

• Max Power Link: 7pcs @120V, 14pcs @230V

• Fuse Protected: T3A/250V Glass Fuse (5*20MM)

Dimensions / Weight:

• Length: 39.5" (1000mm)

• Width: 4” (100mm)

• Height: 5.2” (131mm)

• Weight: 11.7 lbs. (5.3 kg)

What’s Included:

• 1 x IP20 Locking Power Cable

Approvals and Ratings:

• CE

• cETLus (Control # 5005510)

• IP20

Specifications subject to change without notice.

Downloads

Filename	Document type	File type
Eliminator Elektron Bar FX 3D Cad	CAD Drawing	DWG
Elektron Bar FX - Dimensional Drawing	Dimensional Drawings	PDF
Elektron Bar FX - User Manual	User Manual	PDF
Elektron Bar FX - DMX Traits	DMX Traits	PDF
Elektron Bar FX - 2D Cad Drawing	CAD Drawing	DWG
Elektron Bar FX - Cut Seht	Other	PDF
