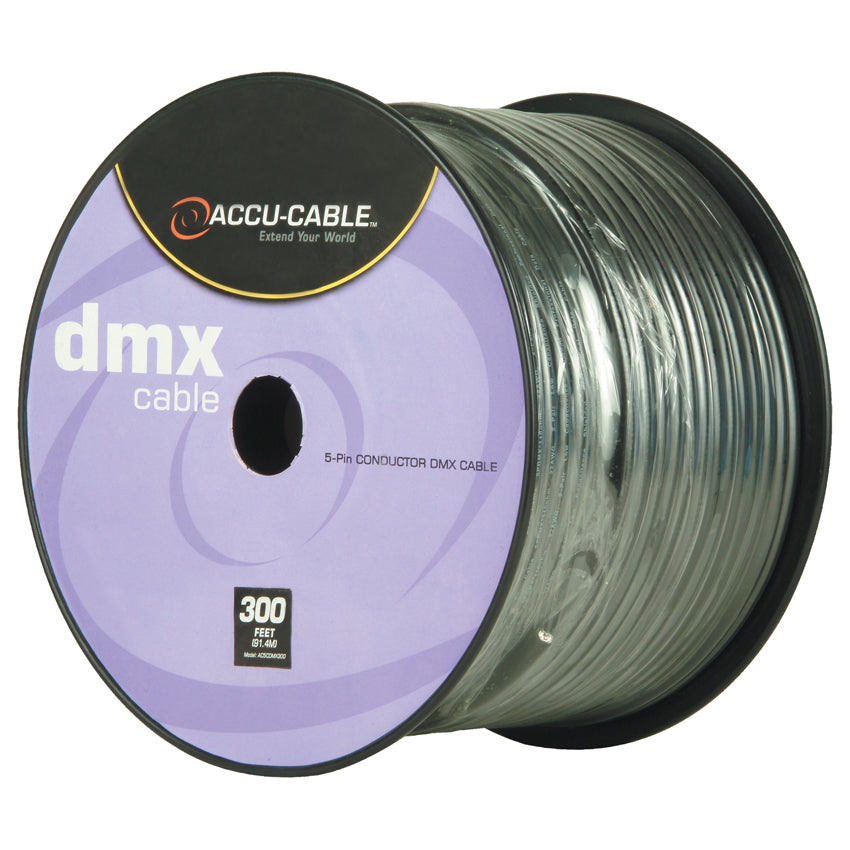

AC5CDMX300
AC5CDMX300
Total Number of Conductors: 4 (plus 1 ground)
AWG: 22
Stranding: 0.15 x 19
Conductor Diameter: .0354"
Conduct or Material: TC-Tinned Copper Insulation: Insulation Material PE Polyethylene Lay Length:
Lay Length: 1.1"
Direction: Left Hand Lay
Twists: 10.9 per foot Inner Jacket:
Inner Jacket Material: PE- Polyethylene
Inner Jacket Diameter: .055"
Pair Color Code: Green/Black/Red/White Outer Shield:
Outer Shield Trade Name: Duofoil®
Outer Shield Type: Tape/Braid Outer Shield Material:
Layer Number:1, Material Trade Name: Dufoil®, Type: Tape, Material: Aluminum Foil-Polyester, Coverage %: 100
Layer Number: 2, Material Trade Name: Dufoil®, Type: Braid, Material: TC-Tinned Copper, Coverage %: 85 Outer Jacket:
Outer Jacket Material: PVC-Polyvinyl Chloride Overall Nominal Diameter:
Overall Nominal Diameter: .295" Mechanical Characteristics:
Operating Temperature Range: (-30 degrees C To + 75 degrees C)
Bulk Cable Weight: 50 lbs/1000
Minimum Bend Radius (Install): 3.5"
Maximum Recommended Pull Tension: 22 lbs. Electrical Characteristics:
Nominal Characteristic Impedence: 110 Ohms
Nominal Capacitance Conductor to Conductor @ 1KHz: 12.5 pF/f t
Nominal Cap Cond. To Other Cond. & Shield @ 1KH z: 23 pF/ft
Nominal Velocity of Propagation: 76%
Nominal Delay: 1.6 Nanoseconds per foot
Nominal Conductor DC Resistance @ 20 degrees C: 24 Ohms/1000 ft
Individual Pair Nominal Shield DC Resistance @ 20 degrees C: 15 Ohms/1000 ft
Nominal Attenuation (dB/100 ft): 0.6 (@ 1 MH) dB/100 ft.
Maximum Recommended Current: 2.1 Amps per conductor @ 25 degrees C
Specifications
- Conductor: Number of Pairs: 2
- Total Number of Conductors: 4
- AWG: 22
- Stranding: 0.15 x 19
- Conductor Diameter: .0354"
- Conduct or Material: TC-Tinned Copper Insulation: Insulation Material PE Polyethylene Lay Length:
- Lay Length: 1.1"
- Direction: Left Hand Lay
- Twists: 10.9 per foot Inner Jacket:
- Inner Jacket Material: PE- Polyethylene
- Inner Jacket Diameter: .055"
- Pair Color Code: Green/Black/Red/White Outer Shield:
- Outer Shield Trade Name: Duofoil®
- Outer Shield Type: Tape/Braid Outer Shield Material:
- Layer Number:1, Material Trade Name: Dufoil®, Type: Tape, Material: Aluminum Foil-Polyester, Coverage %: 100
- Layer Number: 2, Material Trade Name: Dufoil®, Type: Braid, Material: TC-Tinned Copper, Coverage %: 85 Outer Jacket:
- Outer Jacket Material: PVC-Polyvinyl Chloride Overall Nominal Diameter:
- Overall Nominal Diameter: .295" Mechanical Characteristics:
- Operating Temperature Range: (-30 degrees C To + 75 degrees C)
- Bulk Cable Weight: 50 lbs/1000
- Minimum Bend Radius (Install): 3.5"
- Maximum Recommended Pull Tension: 22 lbs. Electrical Characteristics:
- Nominal Characteristic Impedence: 110 Ohms
- Nominal Capacitance Conductor to Conductor @ 1KHz: 12.5 pF/f t
- Nominal Cap Cond. To Other Cond. & Shield @ 1KH z: 23 pF/ft
- Nominal Velocity of Propagation: 76%
- Nominal Delay: 1.6 Nanoseconds per foot
- Nominal Conductor DC Resistance @ 20 degrees C: 24 Ohms/1000 ft
- Individual Pair Nominal Shield DC Resistance @ 20 degrees C: 15 Ohms/1000 ft
- Nominal Attenuation (dB/100 ft): 0.6 (@ 1 MH) dB/100 ft.
- Maximum Recommended Current: 2.1 Amps per conductor @ 25 degrees C
